AC Speed Control Motors

US2 Series

AC Speed Control Motors US2 Series
  • Equipped with a Digital Display Panel and a Setting Dial, It is Easy to Operate with a Rotate-and-Push
  • Easy Wiring to Connect the Motor and Driver
  • Output Power 6 to 90 W
  • Speed Control Range 90 to 1400 (1600) r/min

Tính năng |AC Speed Control Motor US2 Series

Overview of US2 Series

Easy Operation

The digital display panel and setting dials allow for intuitive operation.
It is so simple to use that anyone can master it without looking at the manual.

Video Showing How to Operate

  • Simple and Intuitive Operation

    Turn the setting dial to set the desired value. Determine the rotation speed by simply pushing the setting dial.

    Simple and Intuitive Operation
  • Start, Stop, and Change of Rotation Direction

    With single switch operation, start, stop, and change the rotation direction. There is no need to install an external switch.

    • Start/Stop
      Start/Stop
    • Switching the rotation direction
      Switching the rotation direction

Simple Wiring

Just connect the motor and speed controller, connect to the power supply to start up immediately.
The speed controller has connectors and a built-in capacitor, which eliminates troublesome wiring and connections.

Video showing the wiring method

  • Maximum Extension Distance 10 m

    Easy connection between motor and speed controller via connector.
    The distance between the motor and speed controller can be extended up to 10 meters.

    Maximum Extension Distance 10 m
  • Built-In Capacitor

    The built-in capacitor reduces the need for wiring, and saves space.

    Built-in capacitor

High Reliability

Low Noise and Simple System Configuration

The motors and speed controllers used in the US2 Series generate almost no noise.
As a result, fewer noise-suppressing accessories are needed, for less installation effort, cost reduction, and space saving.

Low Noise and Simple System Configuration

Speed Control Using Closed Loop Control

Stable Operation Even When Load Fluctuates

By constantly checking the rotation speed with the tachogenerator built-in to the AC motor, it is controlled to maintain the setting speed even when the load fluctuates. In addition, the digitalization of the control circuit has improved the speed regulation from -5 % to ±1 % (reference value).

Stable Operation Even When Load Fluctuates

Useful Functions

Open the Front Panel to Set Various Functions

  • Digital Display
    Monitoring information and alarm codes can be displayed.
  • Equipped With Indicator
    Can be set to show the rotation speed of the gearhead output shaft, or conveyor transfer speed.
  • Operation Method Selection
    Select whether to operate by the switch on the front panel or by external commands.
  • Data Protection (Lock)
    Lock the data setting so that the set rotation speed cannot be changed.

Smooth Operation When Starting and Stopping

Motor acceleration time can be set with the acceleration/deceleration time potentiometer.

Setting time 0.1~15 seconds (Factory Setting: Fixed at 1 second)

Smooth Operation When Starting and Stopping

Protection of Motor and Speed Controller

Protects the motor and speed controller with an alarm display if motor generates abnormal heat, has a poor connection, or locks up.

Protection of Motor and Speed Controller

High Strength Gears are Used for Both Right-Angle and Parallel Shafts

Use of a High Permissible Torque, High Strength Gearhead

Uses a motor and gearhead that excels in both permissible torque and strength.

Right-Angle Hollow Shaft Hypoid JH Gearhead

Right-angle hollow shaft hypoid JH gearhead

High strength hypoid gears are used. Significant torque enhancement and noise reduction compared to conventional products are achieved.
The radial and axial loads on the gearhead output shaft are also greatly increased, contributing to the downsizing and enhanced reliability of the equipment.

  • Permissible Torque Increased by 2.7 Times Compared to Conventional Gearheads (Right-angle shaft)
  • Permissible Radial and Axial Loads are Increased Compared to Conventional Gearheads (Right-angle shaft)

Parallel Shaft Gearhead GV Gearhead

Parallel Shaft Gearhead GV Gearhead

By increasing the size of the output shaft bearing and using carburized gears, the permissible torque and permissible radial and axial loads have been increased compared to the conventional gearhead.

  • Twice the Permissible Torque Compared to Conventional Gearheads (Parallel shaft)
  • Permissible Radial and Axial Loads are Increased Compared to Conventional Gearheads (Parallel shaft)

Space Saving and Cost Reduction

Right-Angle Hollow Shaft Hypoid JH Gearhead/Right-Angle Solid Shaft Hypoid JL Gearhead

  • Motor Mounted Perpendicularly to Drive Shaft for Space Saving

    Reduces Overhang From Conveyors
    Reduces overhang from conveyors
  • Cost Reduction by Directly Linking to the Drive Shaft

    Cost Reduction Through Direct Linking

Installation Inside the Conveyor Saves Even More Space

Conveyor drive rollers can be installed on both ends of the load shaft of a hollow shaft type.
The equipment can be made even smaller compared to when the motor is installed on the side of the conveyor.

Conveyor Drive Rollers Can be Mounted on Both Ends of the Load Shaft
Easy Installation With Torque Arm
  • The torque arm (sold separately) further reduces installation time and effort. (Hollow shaft type)

    Torque Arms
    • Easily centered with the equipment
    • Only one needed to stop rotation and secure the equipment

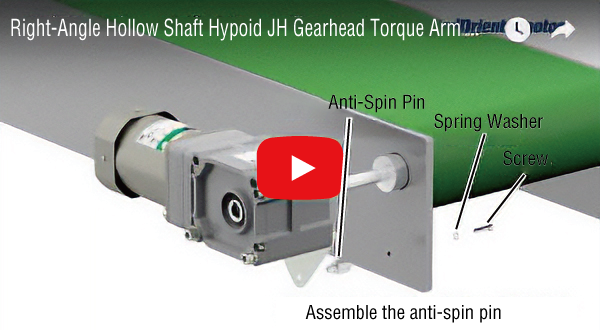

  • How to install using the torque arm

    How to install using the torque arm

Product Line

The "motor," "speed controller," and "connection cable" are arranged separately. They can be purchased in various combinations.
(When the screen transitions upon selecting motor type, the product names of the motor, speed controller, and connection cable, each associated with a "+," will be displayed as a candidate.)

Parallel Shaft Gearhead GV Gearhead and Round Shaft Type

Combination Motor Voltage
[V]
Upper Row: Motor Frame Size/Lower Row: Output Power
60 mm 70 mm 80 mm 90 mm
6 W 15 W 25 W 40 W 60 W 90 W
Parallel Shaft Gearhead GV Gearhead
Parallel Shaft Gearhead GV Gearhead Single-Phase 100
Single-Phase 110/115
Single-Phase 200
Single-Phase 220/230
Round Shaft Type
Round Shaft Type

Right-Angle Hypoid Gearheads

Combination Motor Voltage
[V]
Upper Row: Motor Frame Size/Lower Row: Output Power
60 mm 70 mm 80 mm 90 mm
6 W 15 W 25 W 40 W 60 W 90 W
Right-Angle Hollow Shaft Hypoid JH Gearhead
Hollow right-angle shaft hypoid JH gearhead
Single-Phase 100
Single-Phase 110/115
Single-Phase 200
Single-Phase 220/230
- - -
Right-Angle Solid Shaft Hypoid JL Gearhead
Right-angle solid shaft hypoid JL gearhead
