Tính năng |Brushless motor BLE2 Series

Overview

The new motor structure is smaller than previous models and enables high power and high efficiency.
The driver equipped with the digital indication panel can easily set the speed.

Advantages of Brushless Motors

The brushless motor achieves high efficiency by employing permanent magnets in the rotor section.
The energy saving motors reduce power consumption and CO₂ emissions.
Furthermore, the small size and light weight of the motor helps conserve resources and contributes to carbon neutrality initiatives.

Learn more about the strengths of brushless motors

A story of speed control motor introduction - a comparative case study with inverters

• Easy Setting With the Control Panel

  The operation data and parameters can be set by using the operation keys or the setting dial while checking the digital indication.



  Speed Setting Range

  80~4000 r/min
  (Varies with some gearheads)

  Speed Regulation

  ±0.2 %
  (at digital setting)

• Quick and Reliable Wiring/Connecting

  Quick and reliable wiring is possible thanks to the spring type connectors.



Effective Utilization of Installation Space

Multiple drivers can now be installed in contact with each other, making it possible to reduce the amount of installation space or increase the number of axes within the same equipment space.

Locking Lever Type Connector for Direct Connection

A locking lever type connector specifically designed for small motors allows direct connection between motor and driver.

• Simple Connection

  Cable connection is easy due to the locking lever that does not require screw fitting.

  Installation Method



  Insert the connector

  Turn down the locking lever

  Connection Completed

• Direct Connection With Motors and Drivers^*

  Without an extension cable, a connection of up to 20 m is possible.



  • *Watertight, dust-resistant connection cables are available for relay connections.

  Flexible cables are also available

  Use the flexible connection cable in applications where the cable is bent and flexed repeatedly.

Cable Outlet Direction Can be Selected

The motors are equipped with 4 data setting methods and various functions that correspond with your purpose of use.
Using support software allows equipment start-up and operation status to be checked.

Operating Method

Setting Details

What is "Torque Limiting"?

Torque Limiting That Can be Used as a Limit Function

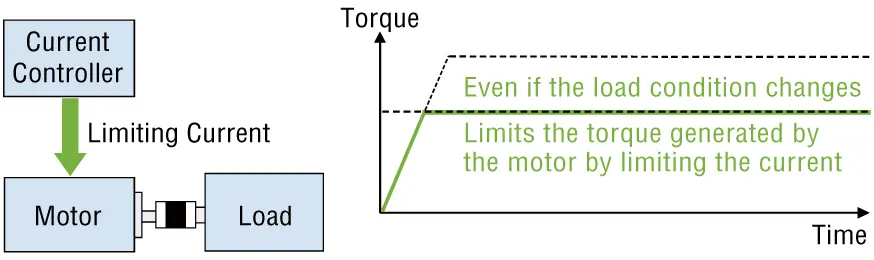

This function can reduce the generated torque by limiting the current flowing to the motor.
Can be utilized for applications that prevent the application of more force than necessary.

torque limiting

Main Functions of the Operation Panel and the MEXE02 Support Software

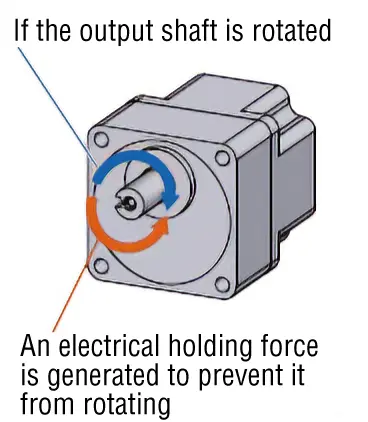

Load Holding Function That Generates Holding Force When External Force is Applied

It can be used as an electrical holding brake^* when stopping without a mechanical brake.

• *Holding loads of up to 50 % rated torque is possible.

Advantages of No Mechanical Brakes

• Long life with no maintenance required due to non-wear parts
• Minimizing space usage and weight of the equipment

Note

If the power supply to the driver is turned OFF, the holding force dissipates.
This cannot be used to prevent a fall during a power outage.

Applications

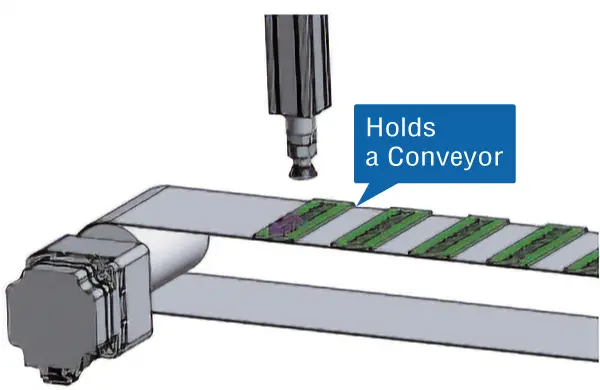

Applications with frequent and repetitive shutdowns

Information Functions Useful for Preventive and Predictive Maintenance

The information function allows the user to set any numerical value for a monitor item, thereby noticing abnormalities before they are stopped by an alarm and avoiding equipment shutdown.

LED Notification of Information Generation

When information is generated, the ALARM-LED blinks orange to provide visual notification.

Useful Functions Utilizing Support Software MEXE02

By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various conditions.

Click here to download the support software

Comprehensive Support From Start-Up to Maintenance With a Variety of Functions

• Startup and Evaluation

  Useful functions for wiring check and test operation are provided.

  • Setting and Saving of Operation Data
  • I/O Monitor
  • Teaching, Remote Operation
• Adjustment

  The following functions are available to help you adjust motor operation after the equipment is installed.

  • Waveform Monitor
• Diagnosis and Maintenance

  Diagnostic and maintenance functions are available for trouble diagnosis and maintenance after operation is started.

  • Alarm Monitor
  • Status Monitor
  • Information Monitor

Click here for details on support software functions

Excellent Protective Structure, Degree of Protection

• Motor Structure

  A sealing insert (O-ring) is used for the mating part to prevent water from entering the inside of the motor.



• Connector Structure

  The connector structure has a built-in gasket and O-ring for improved waterproofing.

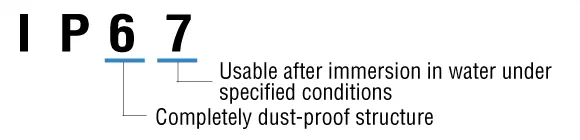

  It is IP67-compliant, including the connector part.



Water-Washable IP67 Rating

• Can be washed with water while still attached to the equipment

  Usable in dusty applications

•

  Waterproof Test Conditions: Immersion to a depth of 1 m for 30 minutes

"Water-Washing Resistant Test" Which Takes Into Account Deterioration Over Time Individual Company Evaluation

• *Click here for more details on test conditions.

Improved Anti-Corrosion Properties

Special rust-resistant coating is applied, and stainless steel material is used for the output shaft and screws. The mounting surface is also painted to prevent rusting, even when assembled to stainless steel equipment.

Matches a Clean Environment

No cooling fan needed, because of the high efficiency motor. Therefore, there is no need to worry about generating dust from outside.

New Connection Cable With IP66/IP67 Rating

Watertight, dust-resistant connection cable for relay connection of motors and drivers are now available.
The connector of the relay section is IP66/IP67-compliant

For more details about the products, please contact your nearest branch or sales office or Customer Support Center.

Click here for the catalog of watertight, dust-resistant connection cable

In addition to the conventional parallel shaft gearhead GFV gearheads, a lineup of gearheads with features such as high gear ratio, high strength, and space saving is available. The permissible load and maximum permissible torque of the output shaft have been greatly increased.

Gearhead Types and Features

Gearhead Type	Parallel Shaft Gearhead			Right-Angle Gearhead	Hollow Shaft Flat Gearhead
	GFV Gearhead	JV Gearhead	JB Gearhead	JH Gearhead	FR Gearhead
External View
Features	Iron shaft, stainless steel shaft Tapped hole at the end of the output shaft H1 food-grade lubricant is also available	High gear ratio Stainless steel shaft	high rigidity High Gear Ratio Integrated foot mount	Space saving, cost saving high strength Stainless Steel Shaft	Space Saving, Cost Saving High permissible torque
Output Power	30 W, 60 W, 120 W 200 W, 300 W, 400 W	200 W, 300 W, 400 W	200 W, 300 W, 400 W	60 W, 120 W, 200 W 300 W, 400 W	30 W, 60 W, 120 W 200 W, 300 W, 400 W
Gear Ratio	5~200	100~450	5~1200	5~200	5~200
Rated Life	10000 hours	5000 hours	5000 hours	5000 hours	10000 hours
Permissible Radial Load*	1400 N	3123 N	3672 N	2405 N	2040 N
Permissible Axial Load*	400 N	480 N	577 N	550 N	800 N
Permissible Torque*	70 N·m	198 N·m	518 N·m	82.8 N·m	54 N·m

• *This value is for output power of 200 W, 3000 r/min, and the maximum gear ratio.

Click here for more information on gearhead features.

Significantly Increased Permissible Load Flange Drive Adapter (Sold separately)

Mounting on a parallel shaft gearhead increases permissible radial and axial loads.

For more information, please click here.
