Features of Brushless Motor Gearhead

Features of Parallel Shaft Gearheads

GFV Gearhead, GFS Gearhead, JV Gearhead, JB Gearhead

High Permissible Torque (JV gearhead, JB gearhead)

The torque is not saturated, and the motor torque can be maximized.

• High Rigidity and Integrated Structure (JB gearhead)

  It is easy to design the shaft center, and the mounting surface is an integrated structure.



• High Strength (JB gearhead)



• H1 Food-grade Lubricant Compatible (GFV gearhead 30 W~120 W)

  A type using H1 food-grade lubricant is also available for lubrication of the gearhead section.



• Long Life

  A rated life of 10000 hours is achieved.

CS Geared Motor

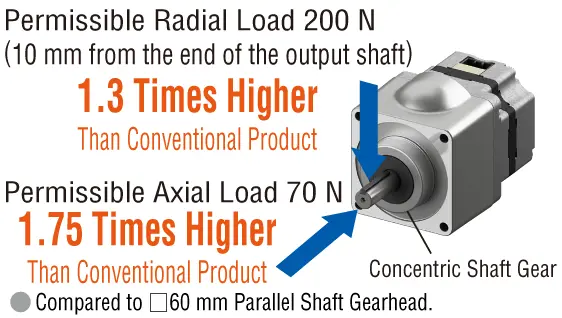

• Increased Load Capacity Compared to Parallel Shaft Gears



• Simplified Design

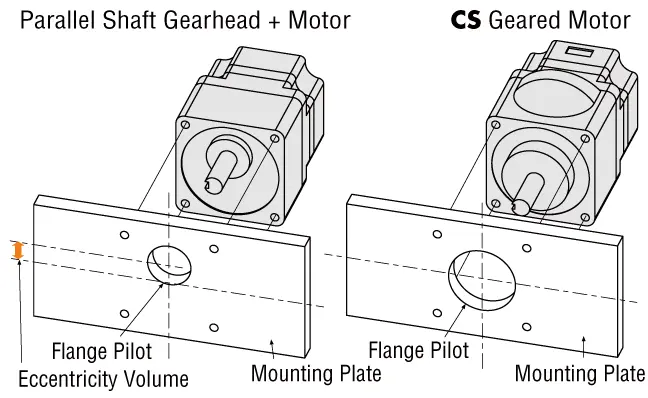

  Eliminating eccentricity in the CS geared motor helps simplify the equipment design.



• About Gear Structure

  Arranging large gears in a configuration free from the central axis allowed a gearhead with a coaxial shaft to be achieved.



The Worm Gearhead (Sold separately) Greatly Increases Permissible Torque

Applicable Motor: Brushless motor, parallel shaft gearhead, 30 W

• Permissible torque is approximately 3 times that of parallel shaft gearheads
• For load holding applications that require self locking to prevent collapsing under its own weight
• Space saving with right-angle shaft/hollow shaft

Refer to here for more information.

Significantly Increases Permissible Load Flange Drive Adapter (Sold separately)

Applicable Motors: Brushless motors, parallel shaft gearhead 100 W/120 W/200 W (Frame size 90 mm)

• Flat profile and high permissible load (Permissible radial load / permissible axial load)
• For heavy load transfer applications such as automated guided vehicles and rotary tables
• Direct mounting to load shafts and enclosures reduces design effort

Refer to here for more information.

Features of Right-Angle Gearheads

JH Gearhead

• Unsaturated Permissible Torque

  The torque is not saturated, and the motor torque can be maximized.



• High Strength

  Compared with parallel shaft gearheads, the permissible radial load is approximately twice as high, and the permissible axial load is approximately 1.7 times as high.



• Space Saving, Cost Saving

  The hollow output shaft allows direct connection with the drive shaft.

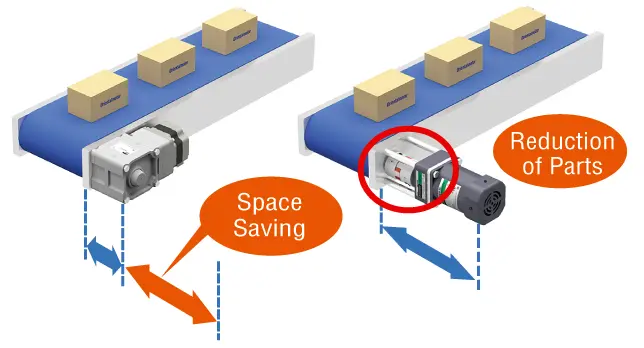

  Couplings, belt pulleys, etc. can be reduced, contributing to space savings and component cost reductions.



Features of the Hollow Shaft Flat Gearhead

FR Gearhead

• Unsaturated Permissible Torque

  The torque is not saturated, and the motor torque can be maximized.



• Space Saving, Cost Saving

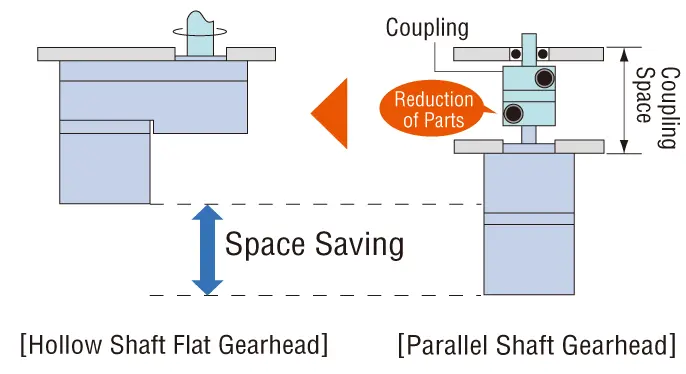

  Couplings, belt pulleys, etc. can be reduced, contributing to space savings and component cost reductions.



Long Life

A rated life of 10000 hours is achieved.

Features of Driving Wheel Motors

Contributes to Reduction of Wheel Mechanism Design and Start-up Time for AGV/AMR

• Reduces effort for wheel mechanism design
• Reduces labor for motor, gearhead, and wheel selection
• Reduce assembly time when assembling equipment
• Load Capacity: 130 kg/wheel max.^*1
• Wheels manufactured by INOAC CASTER AND WHEEL CO., LTD. ^*2 can be combined.

	+	*2

*1

Load capacity is the value added per wheel. Be sure to install passive wheels to prevent exceeding the load capacity.

*2

The wheels are manufactured by INOAC CASTER AND WHEEL CO., LTD. and sold by ORIMVEXTA CO., LTD. The customer is responsible for assembling the wheels.

Achieving a Low Floor Structure and Slimming Down for AGV/AMR

• A hollow shaft flat gearhead is used, enabling a low floor design.



  ※

  130 mm for 400 W

• By arranging the hollow shaft flat gearheads across each other, the distance between the wheels is reduced, enabling a compact design with a reduced vehicle width.
