Tính năng |Stepper Motors PKP Series/CVD Series Pulse Input Driver

Low vibration, high torque, and high efficiency features are introduced here.

Low Vibration

Full-time microstep drive with full digital control has greatly improved the vibration level, resulting in lower vibration in all speed ranges.

Significantly Improved Vibration Characteristics in All Speed Ranges

5-Phase Motor for Even Lower Vibration

Click here for details on, such as an overview, characteristics, and features of this product (Technical report）

Higher Torque

High torque is achieved by combining a high-current driver and a motor with an optimized winding design.

• PKP Series Motor: Higher torque due to revised winding design
• CVD Series Driver: High current drive is possible due to higher efficiency of the drive circuit

2-Phase Motor Increased Torque in Low Speed Range

5-Phase Motor Increased Torque in All Speed Ranges

High Efficiency Design

The CVD Series achieves higher torque by increasing the output current compared to conventional products. The design takes into consideration the reduction of heat generation so that the output current can be increased.

Driver control and circuit technology (Technical report)

Industry's-Top-Class Compact High Performance Driver

Compact and lightweight drivers that contribute to space saving. The size, installation, I/O and power connectors for 2-phase and 5-phase drivers are the same.

Size	Mass
W 85 mm × D 52.5 mm × H 24.5 mm	20~70 g

Driver That Can be Selected According to the Installation Method

Drivers with different shapes and connector orientations are available to match the installation method.

Right-Angle Type With Mounting Plate

The connector faces outwards.

With Mounting Plate

The connector faces upwards.

Examples of driver installation

Board Type S Type

Board type drivers are also available. Click Here for Details

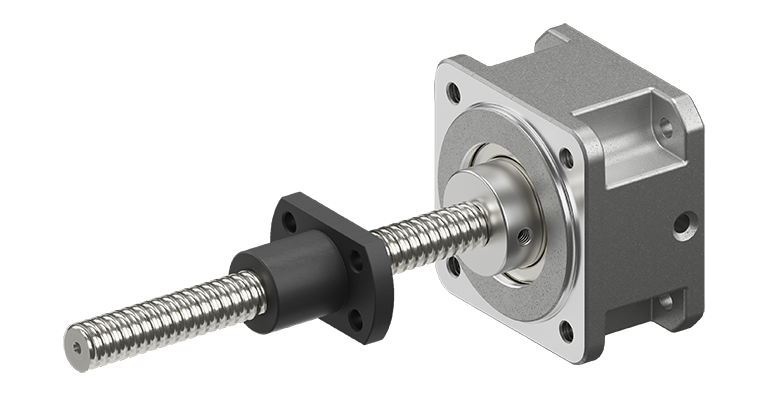

2-Phase Stepper Motors

Classification	Type	Frame Size [mm]	Basic Step Angle [°]	Additional Function

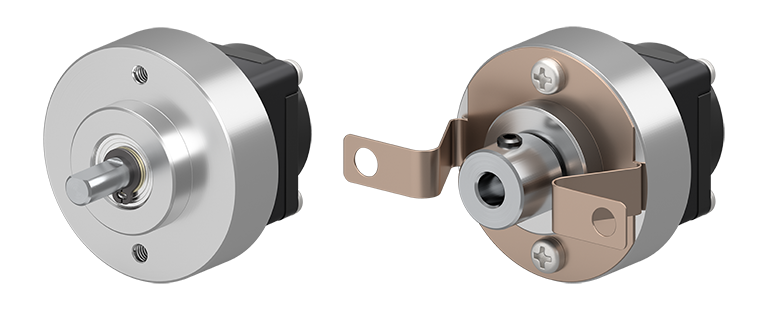

No Gearhead	Standard	13~85	1.8	Encoder, electromagnetic brake
	High resolution	28~56.4	0.9	Encoder, electromagnetic brake
	Flat	42, 60	1.8	None
With Gearhead	SH geared	28~90	0.05~0.5	Encoder
	CS geared	28~60	0.09~0.36	None
	Light harmonic gearhead	51, 61	0.018~0.036	None

Click here for information about PKP Series 2-phase stepper motors

5-Phase Stepper Motors

Classification	Type	Frame Size [mm]	Basic Step Angle [°]	Additional Function
No Gearhead	Standard	20~85	0.72	Encoder
	High resolution	28, 42, 60	0.36	Encoder

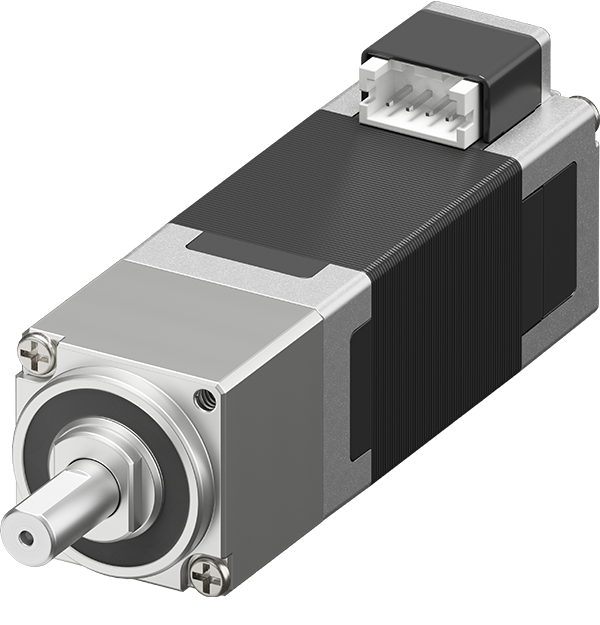

With Gearhead	TS geared	42, 60	0.024~0.2	None

Click here for information about 5-Phase Stepper Motor PKP Series

The torque of 2-phase stepper motors in the low speed range and 5-phase stepper motors primarily in the high speed range has been greatly increased. You can select a motor suited to your specifications from a wide range of speeds and torques.

Application: Inching operation over short distances.

For applications that require rapid acceleration and deceleration, a 2-phase stepper motor with high-torque at low speed is recommended.

Application: Long distance back-and-forth operation.

For applications that require high-speed range, a 5-phase stepper motor with high-speed torque is recommended.

Application: Inching operation over short distances with large amount of inertia.

For applications that require acceleration and deceleration with higher torque, geared types are recommended.
