Tính năng |Hollow Rotary Actuator DH Series

Hollowness Simplifies Piping and Wiring at the End of the Equipment

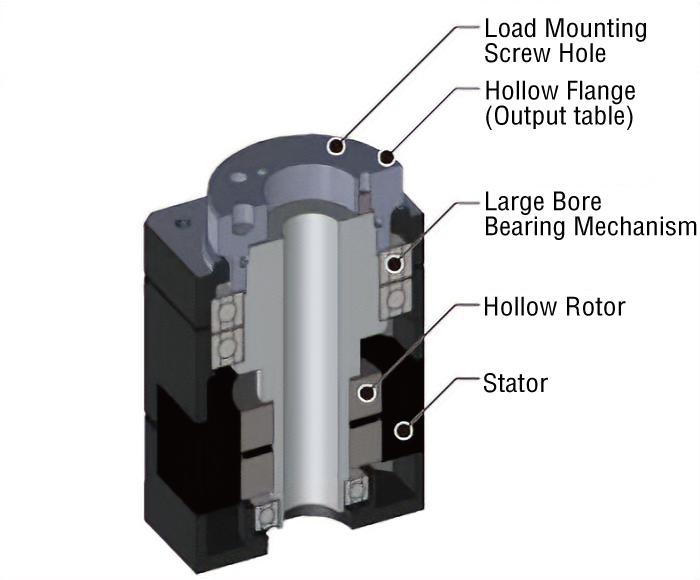

This actuator is a 5-phase stepper motor with a hollow flange. Air piping, wiring, and rays are passed through the hollow section, contributing to a simplified design, smaller size, and lighter weight at the end of the equipment.

•

•

  Product Name	Frame Size	Diameter of Hollow Section	Mass
  DHM28PAK2	28 mm	φ5.2 mm	0.17 kg
  DHM42PAK	42 mm	φ10 mm	0.47 kg

Flange Mount Contributes to the Reduction of Parts Around Moving Parts

The load can be directly mounted to the hollow flange. This contributes to reducing the number of parts around moving parts.

Some of the conventional parts have been eliminated, so the time required for equipment design and product selection is shortened.
Furthermore, the number of man-hours required for assembly and the adjustment of installation accuracy can be reduced, contributing to higher productivity.

Advantages of Using the Equipment

• Reduction of Design Time
• Lower Parts Cost
• Reduction of Assembly Man-Hours
• Reduction of Accuracy Adjustment Time
• Reduction of Maintenance Time

Highly Accurate Positioning

Equipped with a 5-phase stepper motor, it can perform highly accurate positioning and fine operations stably and repeatedly. Microstep drive and smooth drive function in combination with the CVD driver enable smooth operation with low speed vibration. The hollow flange does not use transmission mechanisms such as couplings or belts, so accuracy is not affected by component rigidity or combination errors.

•

  Advantages of Using the Equipment

  • Highly Accurate Parts Alignment
  • Lighter Adsorber Unit
  • Smaller Suction Unit Thanks to Parallel Arrangement

•

  Product Name	Stop Position Accuracy	Repetitive Positioning Accuracy
  DHM28PAK2	±0.33˚	±0.15˚
  DHM42PAK	±0.11˚	±0.05˚

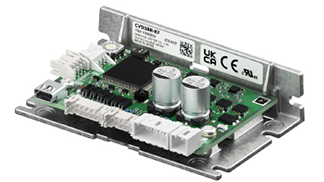

Driver Features

• Features of the CVD Series
• Pulse input driver features
• Features of RS-485 communication type driver

Product Line

The actuator, driver, and connection cable can be purchased individually.

Actuator

Driver

	Driver Type	Power Supply Input
	Pulse input	24 VDC
	RS-485 Communication

Connection Cables/Flexible Connection Cables

Frame Size 28 mm

• Use flexible connection cables for applications where cables are bent.
• A "driver side extension cable" is also available to add to the connection cable.

	Length [m]
	0.5~10

Frame Size 42 mm

The connector is attached to the driver side.

• Use flexible connection cables for applications where cables are bent.
• An "extension connection cable without terminal treatment" for use between the motor and driver is also available.

	Length [m]
	0.5~1

Note

Keep a maximum distance of 10 m for the wiring between the motor and the driver.
