Product Customization - Special Order Support

This section provides information about special orders for those searching for custom Oriental Motor products.

What Is Product Customization (Special Order Support) for Oriental Motor?

Oriental Motor accepts special orders such as for customized processing of various products (special order support).
In addition to "Special Order Support," which is subject to technical requirements and minimum lot size. See below for a description of the customization support available.

Special Order Support

	Special Order Support
Services Available	Individual customization for each customer We will ask about the issue/content and quantity, and confirm the technical feasibility
Applicable Content	Processing of windings, shafts, cables, etc.
Order Quantity	Based on the premise of mass production
Customization Examples	Click here for examples of customization for "Special Order Support"

For more information or technical consultation, please contact us directlyBranch or Sales Office.

Email Inquiries

Example of Filling Out the Inquiry Form

Please fill in the form with as much information as possible regarding the content ("Special Order Support"), the applicable product model, and estimated quantity for the product.

"Special Order Support: I want a shaft processed for an XX Series motor. Quantity is planned to be X units per year"

Examples of Product Customization With “Special Order Support”

Customization is available for shafts, cases, windings, cables, etc.
Below are examples of customization. Please feel free to contact us for any customization that is not listed here.

Applicable Products

Stepper motors, Servo motors, Brushless motors, Electric actuators, AC motors, Cooling fans, Cables, etc.
Please contact Oriental Motor for details.

Processing Example: Shaft

The shaft shape can be modified to match the item to be mounted on the shaft end.

Example) Shaft diameter modify, tip pin hole processing, tip screw hole processing, shaft length modify, etc.

Processing Example: Motor Case

Additional processing can be performed on the motor case if the motor mounting method needs to be modified or if a sensor needs to be mounted on the motor.

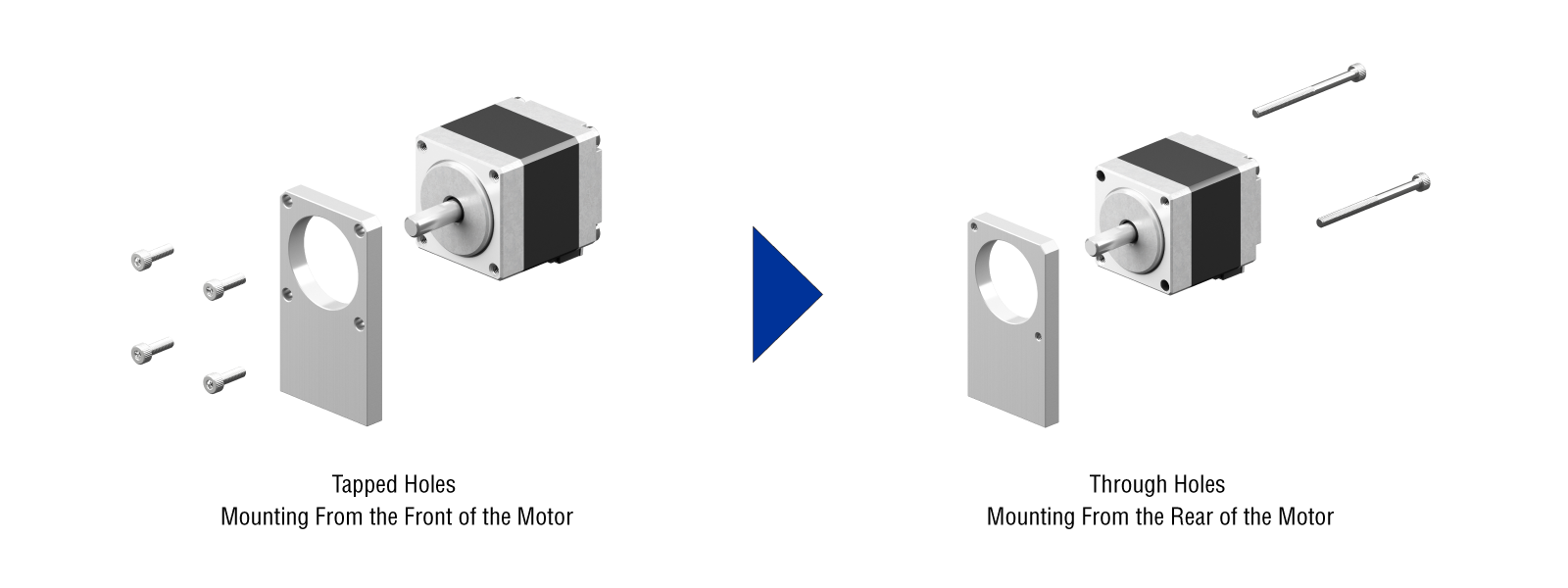

Example) When screw insertion direction relative to the mounting surface is restricted
Mounting holes in the motor case flange modify from tapped holes to through holes, allowing mounting screws to be inserted from the rear of the motor, etc.

Processing Example: Motor Windings

In stepper motors, the number of windings and wire diameter specifications can be modified to match the required specifications for speed–torque characteristics.

Example) Winding specifications modify to secure torque at high speeds, etc.

Example of Characteristics When Winding Processing Is Customized

Processing Example: Cable

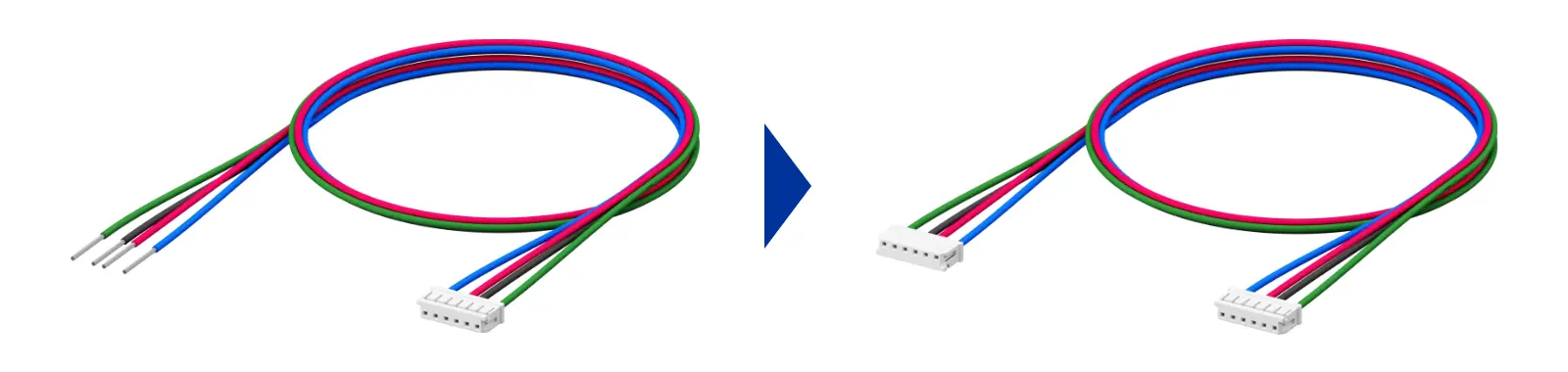

Motor lead wires and cables can be processed to suit the design and manufacturing requirements of the customer equipment.

Example) Assemble the specified connector at the end of the lead wires, bind the lead wires, etc.

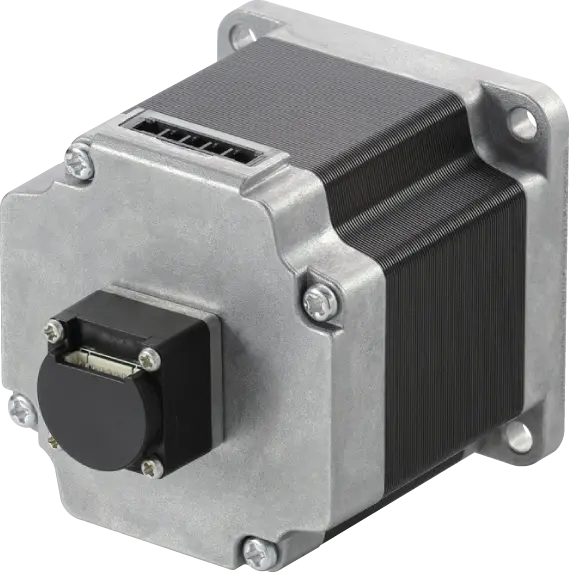

Processing Example: Encoder Resolution

Resolution change to encoder assay products not in the standard product lineup

Encoder type: Incremental
Resolution [P/R]: 100 / 200 / 360 / 400 / 500 / 600 / 720 / 800 / 1000 / 1800 / 2000 / 2500 / 3600 / 4000

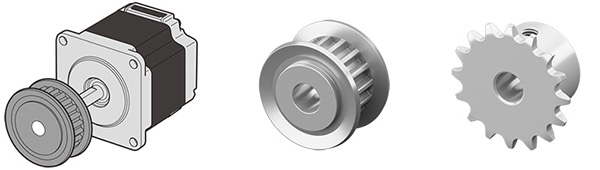

Processing Example: Pulley / Gears / Sprocket Installation

We can install pulley, gears, or sprocket to our stepper motor shaft.
