Tính năng |Linear Head "LH Linear Head" (Speed control motor)

Features of the Linear Head

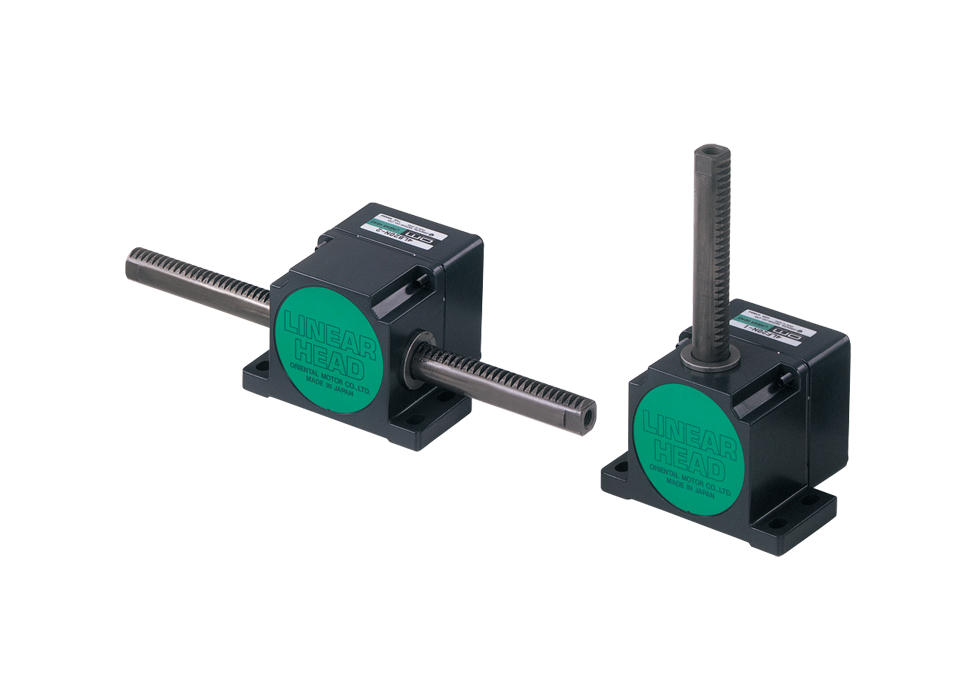

The motor can integrate with a rack-and-pinion mechanism to provide linear motion for pushing, pulling, raising, and lowering.

	LH Linear Heads
Maximum Transportable Mass	~140 kg
Stroke	100~700 mm
Operating Speed	10 mm/s 20 mm/s 45 mm/s *Refer to the product line for details.
Combination Motor	AC speed control motors (MSD Series)

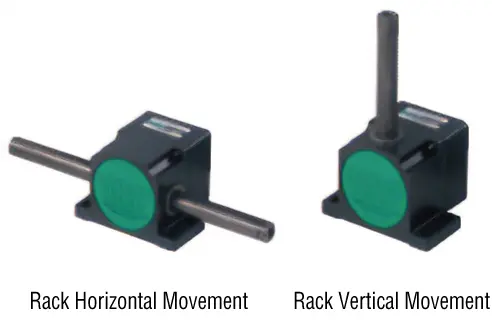

Linear Head Shape (Rack moving direction)	2 types available
Motor Assembly Method	Assemble motor

Reduces Startup Time From Design

Compared to building the rack-and-pinion mechanism on your own, the number of parts used and the labor required for design and assembly can be reduced.
Fix the Rack to Make the Best Use of Space

The motor can run by itself by fixing both ends of the rack.
Effective when it is difficult to find motor space.

The rack-and-pinion mechanism is easy-to-use and can be incorporated as a component.

*When the rack is used in the vertical direction, the speed cannot be controlled by the down side drive. Use at full speed.

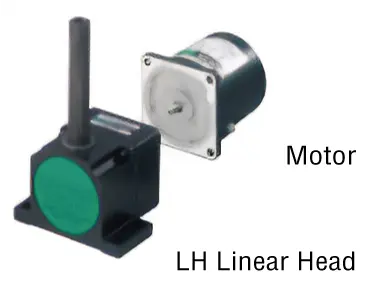

Please purchase the linear head and motor separately.

Linear Head Product Line (Combined motor output power: W)		W × H × D [mm]	Maximum Transportable Mass kg^* (Variable speed range mm/s^*)			Stroke [mm]
LH Linear Heads	2L (6)	88 × 66.3 × 164.5	8.7 (3.2~57)	15 (1.6~28)	20 (0.7~12)	100, 200, 300, 400, 500
	4L (25)	120 × 82 × 191	27 (2.8~50)	52 (1.3~24)	70 (0.7~12)	100, 200, 300, 400, 500, 600, 700
	5L-U (60)	140 × 95 × 270.5	57 (3.1~56)	127 (1.3~22)	140 (0.6~11)	100, 200, 300, 400, 500, 600, 700
