Tính năng |AC Centrifugal Blower MB Series

Ventilation and Cooling with High Static Pressure

Used for spot cooling because it sends out air in a concentrated direction.
The high static pressure also makes it suitable for cooling equipment through which air cannot flow easily, and for air flow and exhaust using ducts.
It can also be used for applications that require suction/adsorption of load.

Spot Cooling of Load

Centrifugal blowers with high static pressures are suitable for the spray cooling of load following heat treatment.

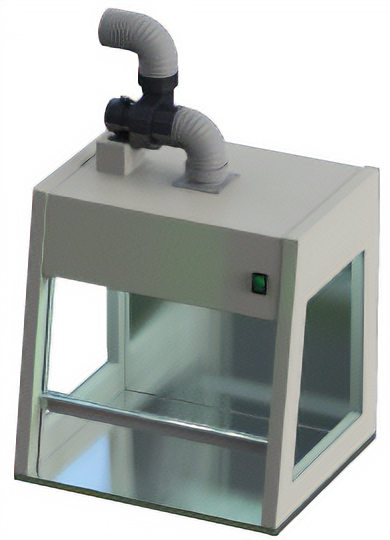

Exhaust with Ducts

These fans have a high static pressure and are suitable for applications that use ducts to suck dust in the air.

Adjustable Air Flow

The speed of these fans can be changed using variable resistors. The air flow can be easily adjusted, contributing to lower fan noise and energy savings.
It also reduces bearing deterioration and extends service life.

Product Line

Fan Only

Series	Power Supply Voltage [V]	Impeller Diameter [mm]
Series	Power Supply Voltage [V]	φ50	φ60	φ80	φ100	φ120	φ160
MB Series	Three-Phase 200/220/230			●		●	●^※
	Single-Phase 100/110/115	●	●	●	●	●	●
	Single-Phase 200/220/230	●	●	●	●	●	●
MB Series Variable Speed Type Fans	Single-Phase 100 VAC				●

*Three-Phase 220 VAC is not supported.
*The impeller diameter of φ50 mm is scheduled to be discontinued.

fan kit product

Fan kit products that include all the necessary accessories are available.

Series	Fan Kit Product Line	Power Supply Voltage [V]	Impeller Diameter [mm]
Series	Fan Kit Product Line	Power Supply Voltage [V]	φ50	φ60	φ80	φ100	φ120	φ160
MB Series	With mounting bracket ／ With mounting bracket and finger guard ／ With mounting bracket and filter	Three-Phase 200/220/230			●		●	●^※
		Single-Phase 100/110/115	●	●	●	●	●	●
		Single-Phase 200/220/230	●	●	●	●	●	●
