Rotary Encoder
Incremental Type
- Frame Size ϕ30 mm/ϕ40 mm, Dustproof and Water-Resistant IP65 Type is Also Available
- Resolution: 100 to 4000 P/R (14 types)
- Line Driver Output, Voltage Output, Open-Collector Output (Power supply voltage 5 to 24 VDC)
Tính năng |Incremental Rotary Encoders

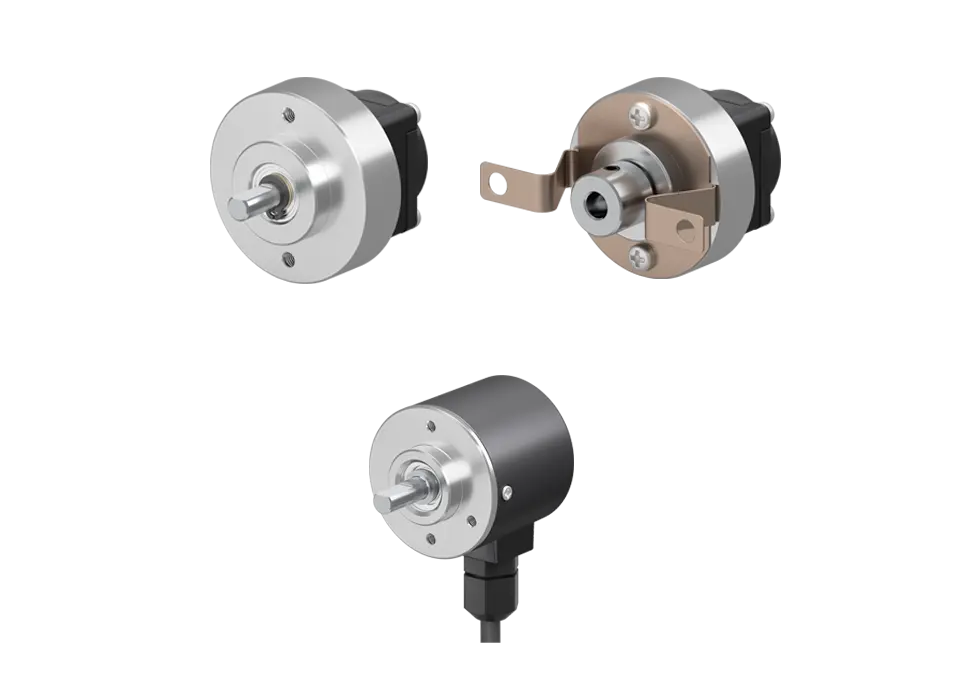

Compact, Thin, and Lightweight Incremental Encoders
Compact Size and Light Weight Contribute to Downsizing of Equipment
Compact, thin, and lightweight, can be installed even in tight spaces. We also offer an IP65 type that can be used in environments where dust and water droplets are available.

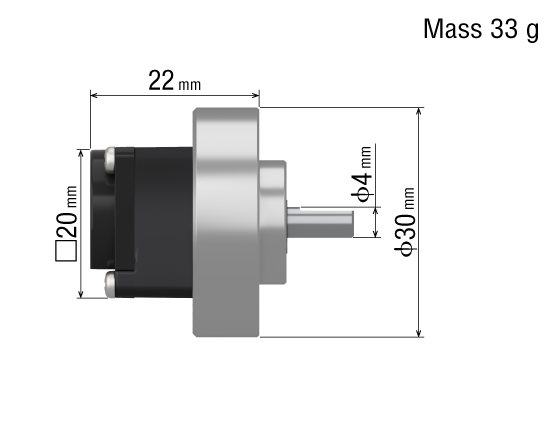

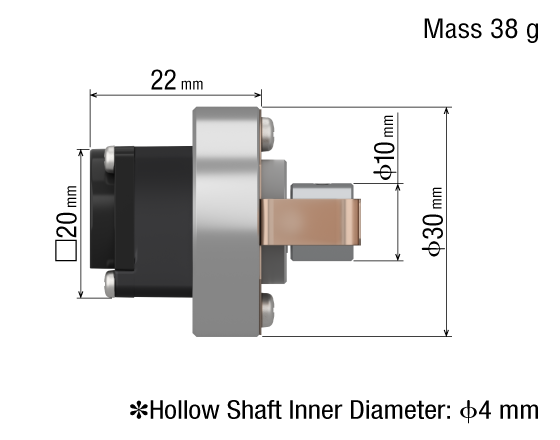

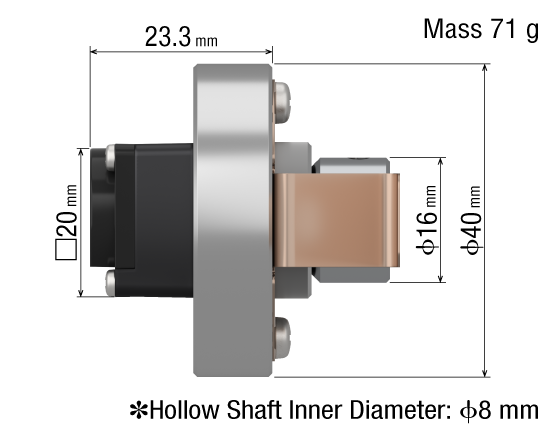

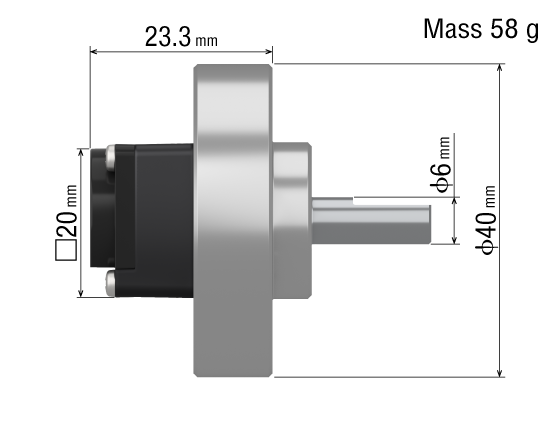

| Round Shaft Type | Hollow Shaft Type | Dustproof and Water-Resistant (IP65) Type | |
|---|---|---|---|
| Frame Size: ϕ30 mm |
|
|
- |
| Frame Size: ϕ40 mm |
|
|
|
High Environmental Resistance to Dust and Condensation
The magnetic encoder is resistant to dust, condensation, and vibration, thus maintaining stable performance.
Quick Delivery and Reasonable Price
Shipping Lead Time: 5 days (Quantity: 1 to 10 units)
List Price: 9,500 JPY to 16,600 JPY
Can be Used in High Temperature Environments
The open-collector output can be used in up to 70 °C, the line driver output* and voltage output can be used in environments up to 85 °C
- *For the dustproof and water-resistant IP65 type, both open-collector output and line driver output are rated up to 70 °C.
14 Resolutions for a Wide Range of Applications
Resolution is 100 to 4000 P/R. 14 types are available, including resolutions that are easy to combine with stepper motors and those suitable for the angle indexing.
Angular Accuracy: ±0.36˚ for High Reliability
Oriental Motor's magnetic encoders have an angular accuracy of ±0.36˚

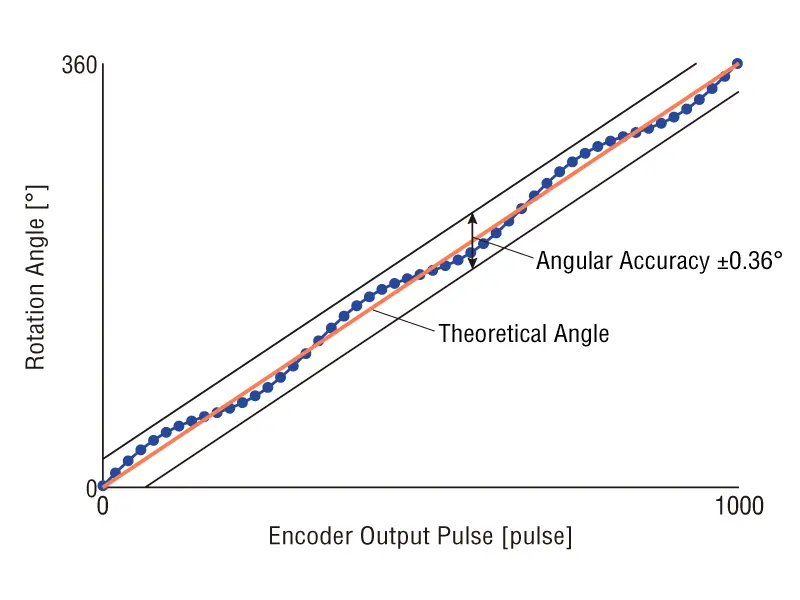

Angular accuracy refers to the difference between the actual rotation angle and the angle output by the encoder.
This reduces the burden of verification at the time of equipment start-up.
Z-phase Signal Improves Home Accuracy
If there is no Z-phase signal for return-to-home, the accuracy of the home position depends on the accuracy of the HOME sensor. Variations in operating speed and ambient temperature will cause variations in home accuracy.
Since the Z-phase signal is output only once per motor revolution, using the Z-phase output during the return-to-home operation improves accuracy.
Easy to Aligning the Mechanical Home and Z-phase Signal

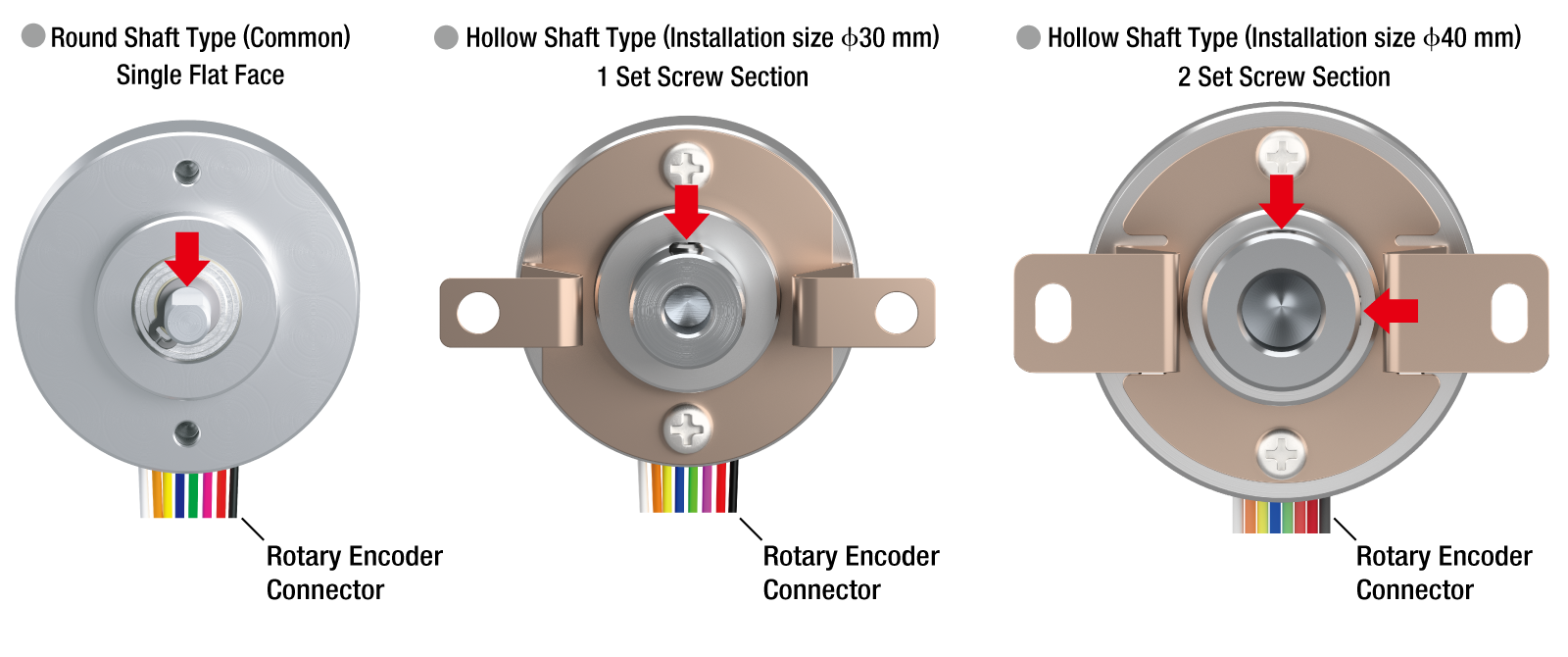

The Z-phase signal is output once per revolution when the encoder connector section is facing down and the shaft flat section (round shaft type) or fixing screw section (hollow shaft type) is in the position indicated by the red arrow.
Direct Control of Encoder Signals Enables System Cost Reduction

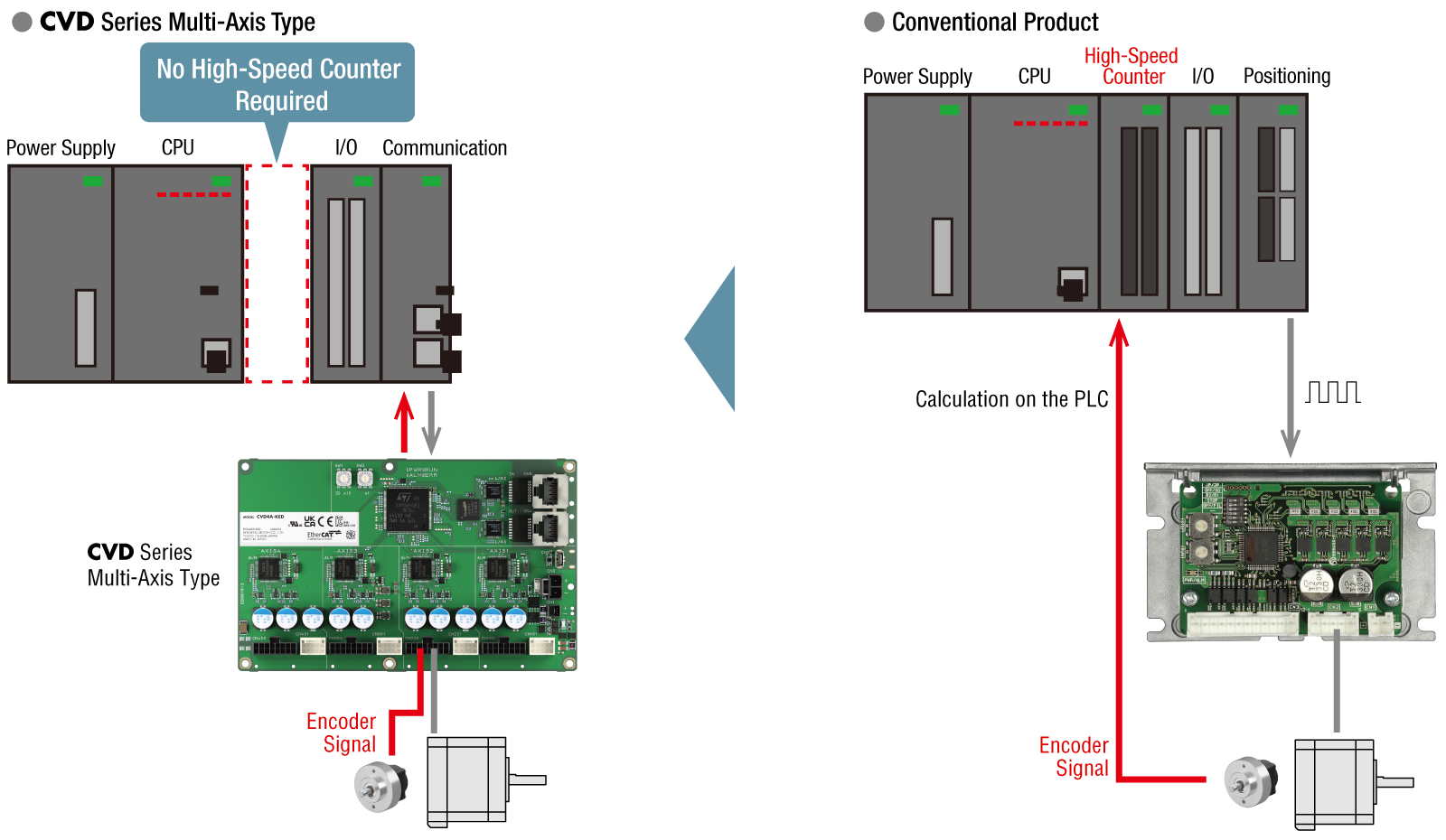

When used in combination with the CVD Series, encoder information can be directly captured to monitor position deviation and detect operational errors. There is no need for high-speed counters, which reduces the cost of the host controller.
- *CVD Series Applicable Products: S type (SPI communication control), fully closed-loop control type, multi-axis type
Dustproof and Water-Resistant IP65 Type
Is the rotary encoder being protected by a cover?
This product is dustproof and water-resistant to IP65 standards, meaning it can be used without being affected by dust or water droplets.
No cover is required, and it can be installed as is.

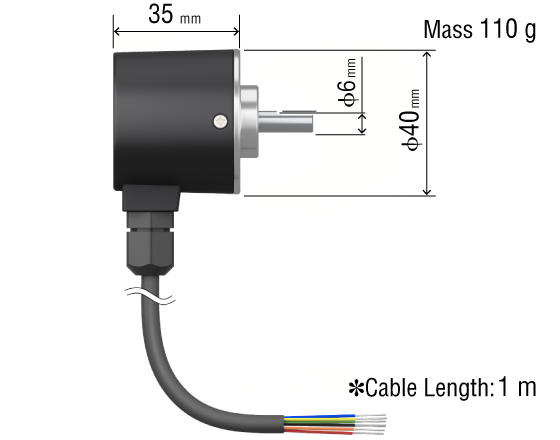

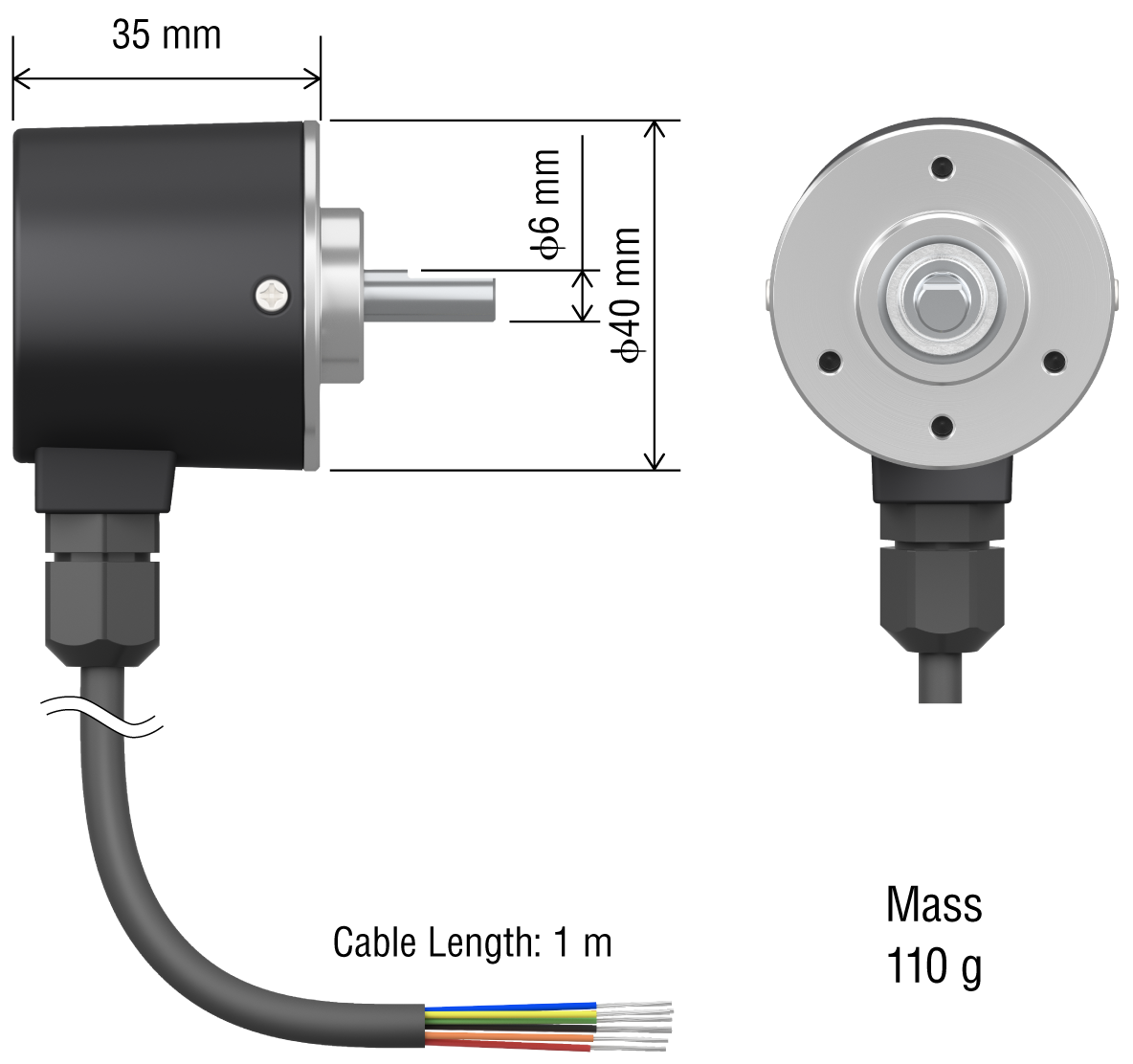

Compact and lightweight. Cable integrated structure.
