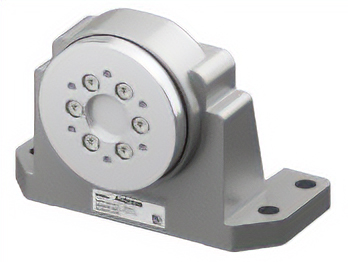

Other Accessories: Flange Drive Adapter
The flange drive adapter is a product that increases the permissible load by mounting on a parallel shaft gearhead.
When retrofitted to a parallel shaft gearhead, the permissible radial load and permissible axial load are significantly increased compared to those of the gearhead alone. Wheels and rotary tables can be directly mounted on rotating mechanisms easily, contributing to reduced design times.
Features
Dramatic Increases in Permissible Load
High permissible load is achieved by adopting a cross-roller bearing for the bearings.
When combined with a motor (gearhead), the permissible radial load and permissible axial load are greatly increased, allowing for the capability of handling of loads larger than with the gearhead alone.
Easy installation
Installation work is simplified because they can be attached directly to the load shaft and directly to the enclosure
Simplified design
Thanks to the integration with cross-roller bearings, load mounting tables, etc., the time to arrange extra parts and mechanism design is reduced.
For applications involving rotating heavy objects
The increased permissible load makes transportation of heavy objects possible for automated guided vehicles and rotary tables.
AGV (Automated guided vehicle)

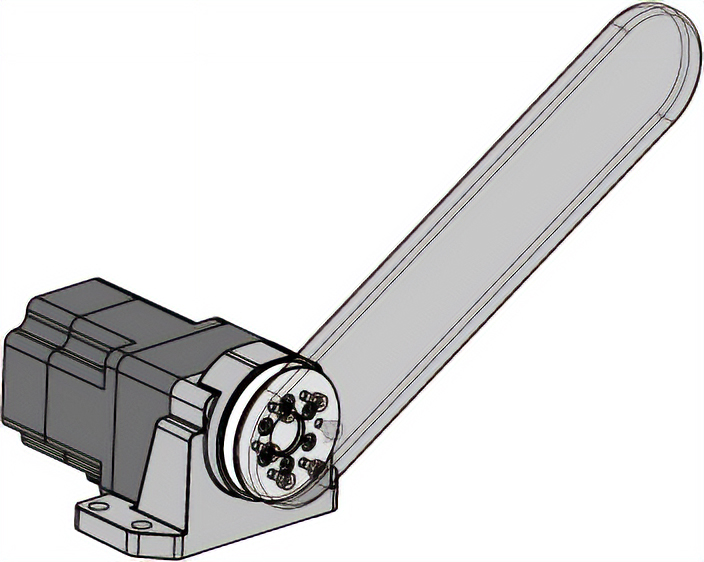

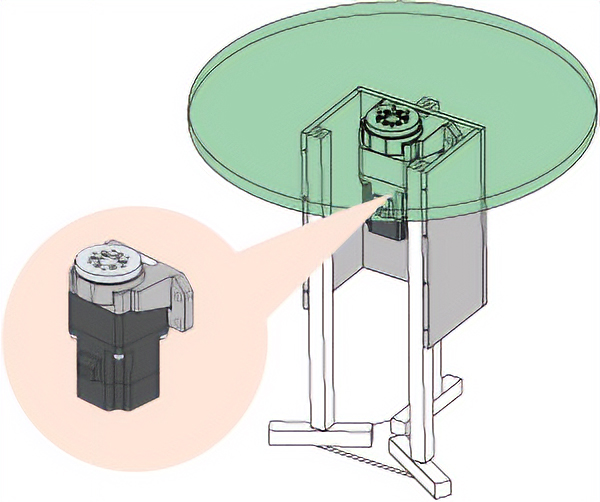

Rotary Table and Arm Drive
Product Line
| Product Name | Applicable Product | List Price | |||
|---|---|---|---|---|---|
| Gearhead | Series | Output Power | |||
|
AGD580B | Parallel Shaft Gearhead (frame size 90mm) |
BMU Series BLE2 Series BXII Series |
120 W | 52,800 JPY |
| BLV Series R type BLV Series BLH Series |
100 W | ||||
| BLV Series R type | 200 W | ||||
