Cables: Watertight, Dust-Resistant Connection Cable For BMU Series Connector Type
When purchasing a BMU Series connector type motor and driver, please purchase together with the dedicated connection cable (cable outlet in output shaft direction/opposite to output shaft direction/in vertical direction).
| Number in Illustration | Cable Name |
|---|---|
| - | Connection Cable Motor Side |
| [1] | Connection Cable Driver Side |
| Connection Cable on Driver Side Panel Mounting Type |
| Number in Illustration | Cable Name |
|---|---|
| [2] | I/O Signal Cable Connector Type |
| I/O Signal Cable General-Purpose Type | |
| [3] | AC Power Supply Cable |
- → Click here for Cable Product Line
Features
- Relay connectors are IP66/IP67 compliant
- Noise-resistant
- Lineup includes panel mounting types for convenient board mounting
Connection Cable
This cable can be used to connect the motor with driver.
Connection Cable Motor Side
This cable can be connected directly to the motor connector.
| Length (m) | Cable outlet in output shaft direction
Product Name |

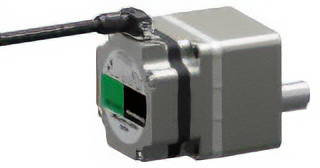

Cable outlet opposite to output shaft direction
Product Name |
|
|---|---|---|---|
|
1 | CCM010B2EFFM | CCM010B2EBFM |
| 2 | CCM020B2EFFM | CCM020B2EBFM | |
| 3 | CCM030B2EFFM | CCM030B2EBFM | |
| 5 | CCM050B2EFFM | CCM050B2EBFM | |
| 7 | CCM070B2EFFM | CCM070B2EBFM |
- * For the cable outlet in output shaft direction type, make sure that it does not interfere with the mounting plate before use.
[1] Connection Cable Driver Side
| Length (m) | Product Name | Panel Mounting Type
Product Name |
|---|---|---|
| 1 | CCM010B2ACFT | CCM010B2ADFT |
| 2 | CCM020B2ACFT | CCM020B2ADFT |
| 3 | CCM030B2ACFT | CCM030B2ADFT |
| 5 | CCM050B2ACFT | CCM050B2ADFT |
| 7 | CCM070B2ACFT | CCM070B2ADFT |
| 9 | CCM090B2ACFT | CCM090B2ADFT |
Other Cables
Cable can be used to connect the driver and controller.
[2] I/O Signal Cable
Connector Type
Shielded cable for I/O signal wiring of various speed controllers and drivers. Ground wire with round terminal for easy shield grounding. Marked tubes are provided for easy identification of lead wires.
For 30 W, 60 W, 120 W
| Product Name | Length (m) | Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC09D005C-1 | 0.5 | 9 | 24 | φ1.1 | φ6.7 |
| CC09D010C-1 | 1 | |||||
| CC09D020C-1 | 2 |
For 200 W, 400 W
| Product Name | Length (m) | Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC12D005C-1 | 0.5 | 12 | 24 | φ1.1 | φ7.5 |
| CC12D010C-1 | 1 | |||||
| CC12D020C-1 | 2 |
General-Purpose Type
- Multi-core shielded cable
- Double-ended discrete wire
- Includes ground wire with round terminal for easy shield grounding
- Select the number of lead wire cores that matches the desired functionality.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC06D005B-1 | 0.5 | 6 | 24 | φ1.1 | φ5.4 |
| CC06D010B-1 | 1 | |||||
| CC06D015B-1 | 1.5 | |||||
| CC06D020B-1 | 2 | |||||
| CC10D005B-1 | 0.5 | 10 | φ6.7 | |||
| CC10D010B-1 | 1 | |||||
| CC10D015B-1 | 1.5 | |||||
| CC10D020B-1 | 2 | |||||
| CC12D005B-1 | 0.5 | 12 | φ7.5 | |||
| CC12D010B-1 | 1 | |||||
| CC12D015B-1 | 1.5 | |||||
| CC12D020B-1 | 2 | |||||
| CC16D005B-1 | 0.5 | 16 | ||||
| CC16D010B-1 | 1 | |||||
| CC16D015B-1 | 1.5 | |||||
| CC16D020B-1 | 2 |
[3] AC Power Supply Cable
This cable is to connect driver and AC power supply. Cables are available with or without a power supply plug.
