Accessories for Fans: Mounting Brackets for Centrifugal Blowers

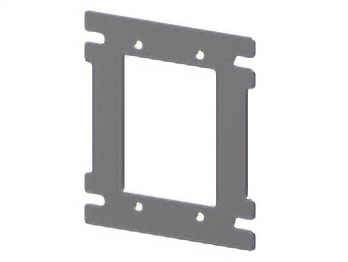

Mounting brackets for Centrifugal Blowers
This is a mounting bracket to fix the centrifugal blower motor.
| Product Name | Applicable Product | |
|---|---|---|
 |
PAS2B | MB520, MB630 |
| PAS4B | MB840, MB1040, MB10V MBD8, MBD10, MBD12 |
|
| PAS6A | MB1255 | |
| PAS5A | MB1665 |
<Mounting Example>

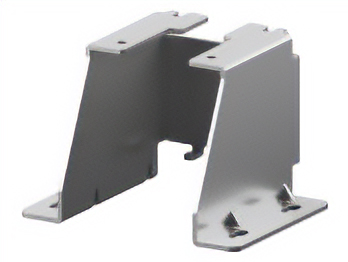

Mounting Pedestal for MB Series S Type
| Product Name | Applicable Product | |
|---|---|---|
 |
PAS12 | MBS10, MBS12 |
<Mounting Example>
Mounting Bracket for Exhaust Outlet for MB Series S Type
| Product Name | Applicable Product | |
|---|---|---|
 |
PASF12 | MBS12 |
<Mounting Example>
Mounting Bracket for Centrifugal Blowers Horizontal mounting
This is a mounting bracket to fix the centrifugal blower motor. A φ3.5 round hole and an M4 tapped hole are provided for convenient wiring of the centrifugal blower and installation of the capacitor.
The mounting direction of the centrifugal blower can be freely adjusted and fixed.
| Product Name | Applicable Product | |
|---|---|---|
 |
PAS4B2 | MB840, MB1040, MB10V MBD8, MBD10, MBD12 |
<Mounting Example>
Mounting bracket for Centrifugal Blowers Vertical Mounting
This is a mounting bracket to fix the centrifugal blower motor. A φ3.5 round hole and an M4 tapped hole are provided for convenient wiring of the centrifugal blower and installation of the capacitor.
Installation with the centrifugal blower intake facing downward is possible.
| Product Name | Applicable Product | |
|---|---|---|
 |
PAS4B3 | MB840, MB1040, MB10V MBD8, MBD10, MBD12 |
<Mounting Example>
