Brushless Motor BLS Series Product Line

Motors

Motors, drivers, and connection cables are all sold separately. They can be purchased in various combinations.

Standard (AC motor compatible) Type

Output Shaft Type	Frame Size [mm]	Output Power [W]	Gearhead Gear Ratio	Gearhead Permissible Torque [N·m]	Speed Control Range [r/min]
Parallel Shaft Gearhead	80	25	3~180	8	100~2000
	90	40		10
		90		20

High-Strength, Long Life Type

Output Shaft Type	Frame Size [mm]	Output Power [W]	Gearhead Gear Ratio	Gearhead Permissible Torque [N·m]	Speed Control Range [r/min]
Parallel Shaft Gearhead	60	30	5~200	6	100~4000
	80	60		16
	90	120		30
Hollow Shaft Flat Gearhead	60	30		16
	80	60		32
	90	120		65

Round Shaft Type

Output Shaft Type	Frame Size [mm]	Output Power [W]	Speed Control Range [r/min]
Round Shaft Type	60	30	100~4000
	80	60
	90	120

Driver

Driver Type	Output Power [W]	Power Supply Voltage [V]

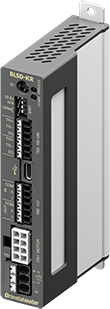

RS-485 Communication Type NEW	25~120	24 VDC
Simple Type

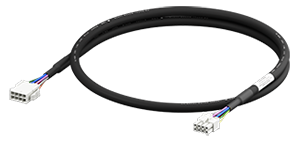

Connection Cable

	Length [m]
	1/2/3/5/7/10
