αSTEP AR Series
ARD-CD2
Control Circuit
| Phân loại sản phẩm | Tên sản phẩm | Giá niêm yết | Giá niêm yết | Ngày vận chuyển |
|---|---|---|---|---|
| Control Circuit | ARD-CD2 | SGD 741 | USD 593 | 5 Working Days |
Bao gồm
- Control Circuit: Connector for 24 VDC Power Supply Input/Regeneration Resistor Thermal Input/Electromagnetic Brake Connection Terminal, Sensor Signal Connector, Input Signal Connector, Output Signal Connector, Connector for Regeneration Resistor Input/Main Power Input Terminals, Connector Wiring Lever
Thông số kỹ thuật

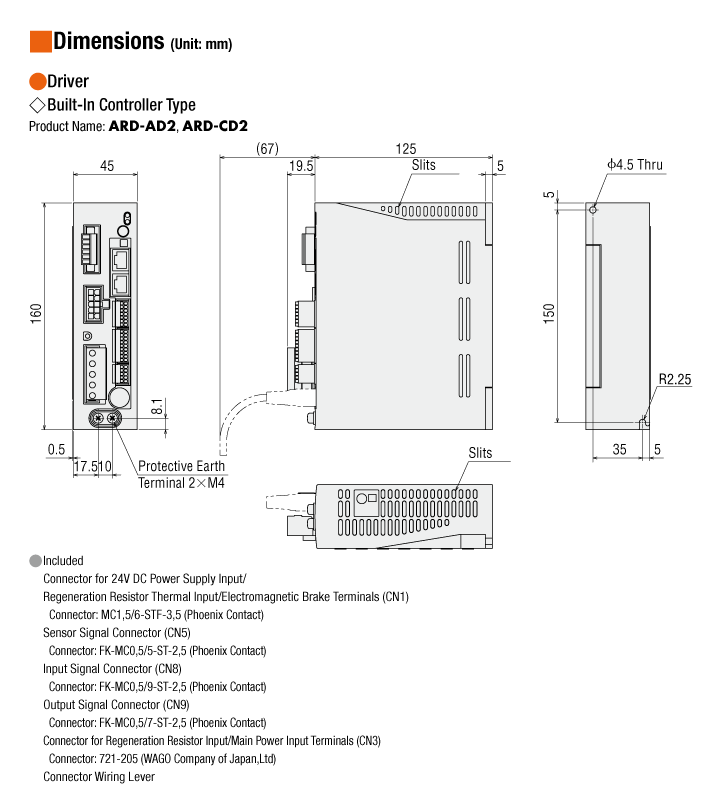

Kích thước
Tải dữ liệu
Các thông số kỹ thuật khác
Driver Specifications
| Built-in Controller Type | Pulse input type | |||
|---|---|---|---|---|
| Input/Output Function | Maximum Input Pulse Frequency | − | Line driver output by host controller: 500 kHz (at 50 % duty) Open-Collector Output by Host Controller: 250 kHz (at 50 % duty)*1 Negative Logic Pulse Input (Initial value) |
|
| Number of Positioning Data Sets | 64 Points | − | ||
| Direct Input | 8 Points | 8 Points | ||
| Direct Output | 6 Points | 9 Points | ||
| RS-485 Communication Network Input | 16 Points | − | ||
| RS-485 Communication Network Output | 16 Points | − | ||
| Setting Tool | Data Setting Software MEXE02 | ◯ | ◯ | |
| Control Module OPX-2A | ◯ | ◯ | ||
| Operation | Positioning Operation | Single-motion Operation | ◯ | − |
| Linked Operation | ◯ | − | ||
| Sequential Operation | ◯ | − | ||
| Direct Operation | ◯ | − | ||
| Push-Motion Operation | ◯ | ◯*2 | ||
| Continuous Operation | ◯ | − | ||
| Return-to-Home Operation | ◯ | − | ||
| JOG Operation/Test Operation | ◯ | ◯*2 | ||
| Monitor/Warning | Waveform Monitoring | ◯ | ◯ | |
| Overload Detection | ◯ | ◯ | ||
| Overheat Detection (Motor and Driver) | ◯ | ◯ | ||
| Position/Speed Information | ◯ | ◯ | ||
| Temperature Detection (Motor and Driver) | − | − | ||
| Motor Load Factor | − | − | ||
| Travel Distance , Cumulative Travel Distance | − | − | ||
| Alarm | ◯ | ◯ | ||
- *1
- The value when the general-purpose cable (CC36D1E) (sold separately) is used.
- *2
- Setting with extended function (MEXE02 or OPX-2A)
Note
- Do not perform push-motion operation using geared types. Doing so may damage the motor or gearhead.
RS-485 Communication Specifications
| Protocol | Modbus RTU mode |
|---|---|
| Electrical Characteristics | EIA-485 Compliant, straight cable Use twisted-pair cables (TIA/EIA-568B CAT5e or better recommended), the max. total extension length is 50 m.* |
| Mode | Half duplex and asynchronous mode (data: 8 bits, stop bit: 1 bit or 2 bits, parity: none, even, or odd) |
| Transmission Rate | Selectable from 9,600 bps, 19,200 bps, 38,400 bps, 57,600 bps and 115,200 bps. |
| Connection Type | Up to 31 drivers can be connected to one host controller. |
- *If a specific wiring and layout causes the motor cable or power supply cable to generate a noise problem, shield the cable or use ferrite cores.
Driver General Specifications
| Item | Specifications | |
|---|---|---|
| Operating Environment (When operating) |
Ambient Temperature | Built-in Controller Type: 0 ∼ +55 ℃ (Non-freezing)* Pulse Input Type: 0 ∼ +50 ℃ (Non-freezing)* |
| Ambient Humidity | 85% max. (Non-condensing) | |
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | |
- *When installing a heat sink equivalent to an aluminum plate min. 200×200 mm, thickness 2 mm
Tiêu chuẩn
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
