Electric Grippers EH Series αSTEP AZ Series Equipped
EH4-AZAKH
Actuator
| Phân loại sản phẩm | Tên sản phẩm | Giá niêm yết | Giá niêm yết | Ngày vận chuyển |
|---|---|---|---|---|
| Actuator | EH4-AZAKH | SGD 908 | USD 726 | 16 Working Days |
• Specifications and various data of combination products may be shown on the combination product page. Please check the page of the combination product.
Bao gồm
- Operating Manual
Thông số kỹ thuật

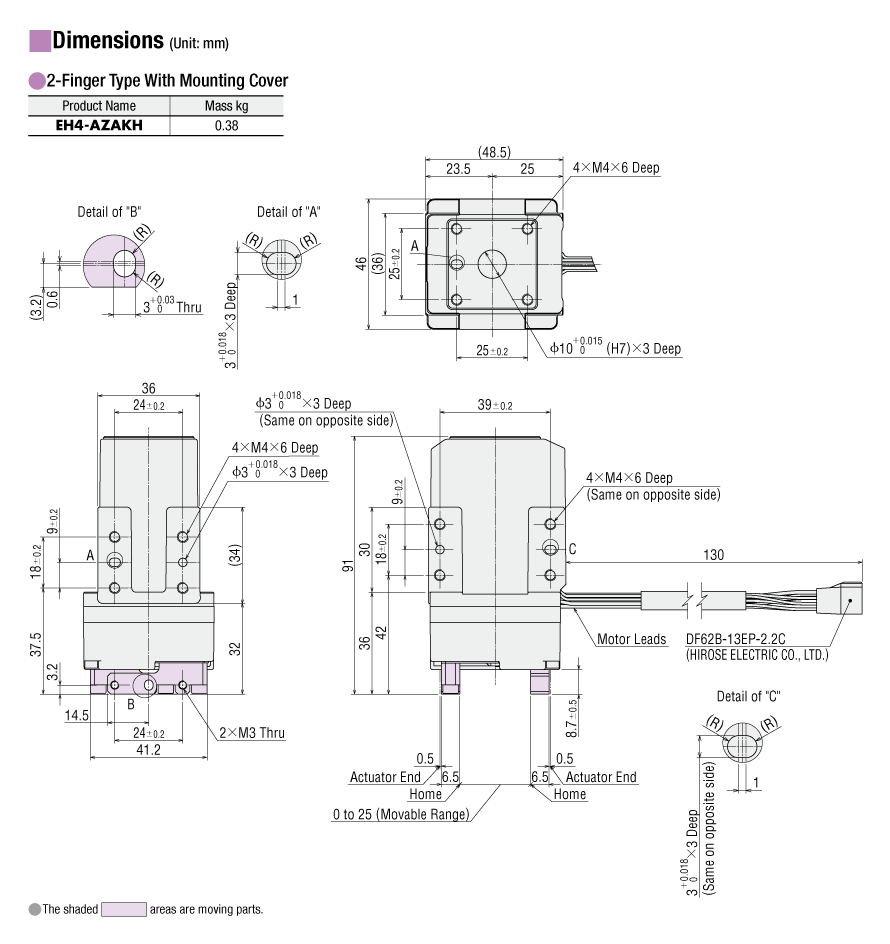

Kích thước
Tải dữ liệu
Các thông số kỹ thuật khác
General Specifications
| Electric Grippers | Driver | |||
|---|---|---|---|---|
| Thermal Class | 130(B) | − | ||
| Insulation Resistance |
100 MΩ or more when a 500 VDC megger is applied between the following places.
|
100 MΩ or more when a 500 VDC megger is applied between the following places.
|
||
| Dielectric Strength |
Sufficient to withstand the following for 1 minute:
|
− | ||
| Operating Environment (When operating) |
Ambient Temperature | 0~+40 °C (Non-freezing)* | 0~+50 °C (Non-freezing)* | |
| Ambient Humidity | 85 % max. (Non-condensing) | |||
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | |||
| Degree of Protection | − | IP10 | ||
- *According to Oriental Motor’s measurement conditions
Note
- Disconnect the motor and driver when measuring insulation resistance, or performing a dielectric strength test.
Also, do not conduct these tests on the ABZO sensor part of the motor.
Load Moment Formula
Load Moment Formula
Travel Direction
The factory default setting for the travel direction is as follows.
Tiêu chuẩn
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
