Mounting Adapter for Linear Actuator

LA4212C30

In tất cả thông tin sản phẩm cùng một lúc
LA4212C30

Mounting Adapter for Linear Actuator

Phân loại sản phẩm Tên sản phẩm Giá niêm yết Giá niêm yết Ngày vận chuyển
Mounting Adapter for Linear Actuator LA4212C30 SGD 263 USD 210 16 Working Days

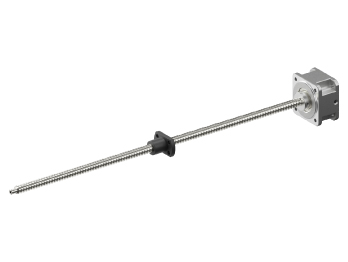

• This is an adapter that mounts on a stepper motor to realize linear motion with a lead screw and a resin nut.

Bao gồm

  • Mounting Adapter for Linear Actuator: Resin Nut, Motor Output Shaft Mounting Screw, Motor Assembly Screw, Grease, Operating Manual

Thông số kỹ thuật

Đặc trưng

Backlash Change Amount (Reference value)
Backlash Change Amount (Reference value)

Backlash Change Amount (Reference value)

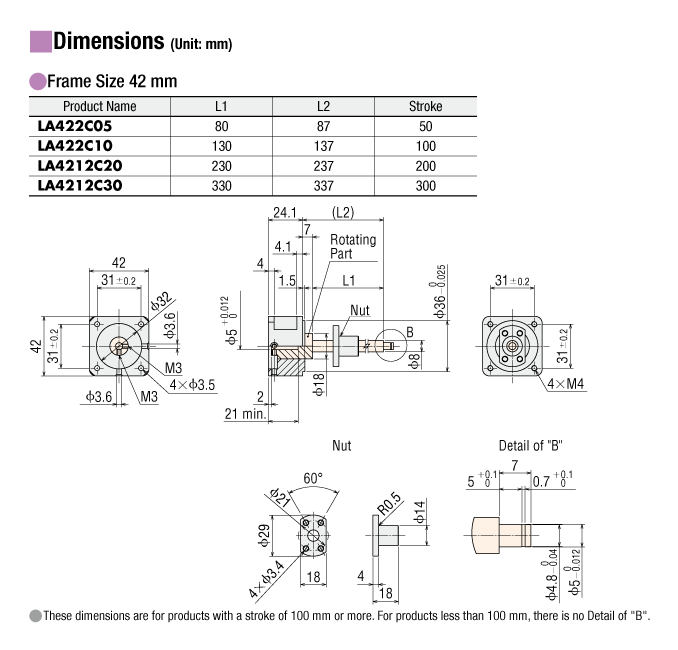

Kích thước

Mounting Adapter for Linear Actuator
Mounting Adapter for Linear Actuator

Mounting Adapter for Linear Actuator

Tải dữ liệu

Các thông số kỹ thuật khác

General Specifications

Item Specifications
Operating Environment
(When operating)		 Ambient Temperature 0 ∼ +40 ℃ (Non-freezing)
Ambient Humidity 85% max. (Non-condensing)

Tiêu chuẩn

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be found here.

Information about our compliance with regulations and standards for each of our product series can be found here.

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

Tải dữ liệu
