The Watertight, Dust-resistant Connection Cable of Brushless Motors for Improved Maintenance in Food Conveyors
| Industries | Food manufacturing and packaging |
|---|---|
| Process and Equipment Name | Food conveyors |
| Issue | Maintenance, productivity improvement |
Issue: To Improve the Waterproofing of the Conveyor Drive Module Relay Section
Existing Problems/Requests
When cleaning a food conveyor, the waterproofing of the relay section between the main body and the conveyor drive module was low, requiring careful cleaning.
Solution: Watertight, Dust-Resistant Connection Cables for BMU/BLE2 Series Brushless Motor Connector Type for Improved Maintainability
Improving maintainability is one of the most important issues for food conveyors. When cleaning a food conveyor, the conveyor drive module must be removed from the main body for cleaning. Previously, the relay section between the main body and the conveyor drive module had poor waterproofing, the effort required for cleaning.
The watertight, dust-resistant connection cables can be used to improve maintainability of food conveyors.

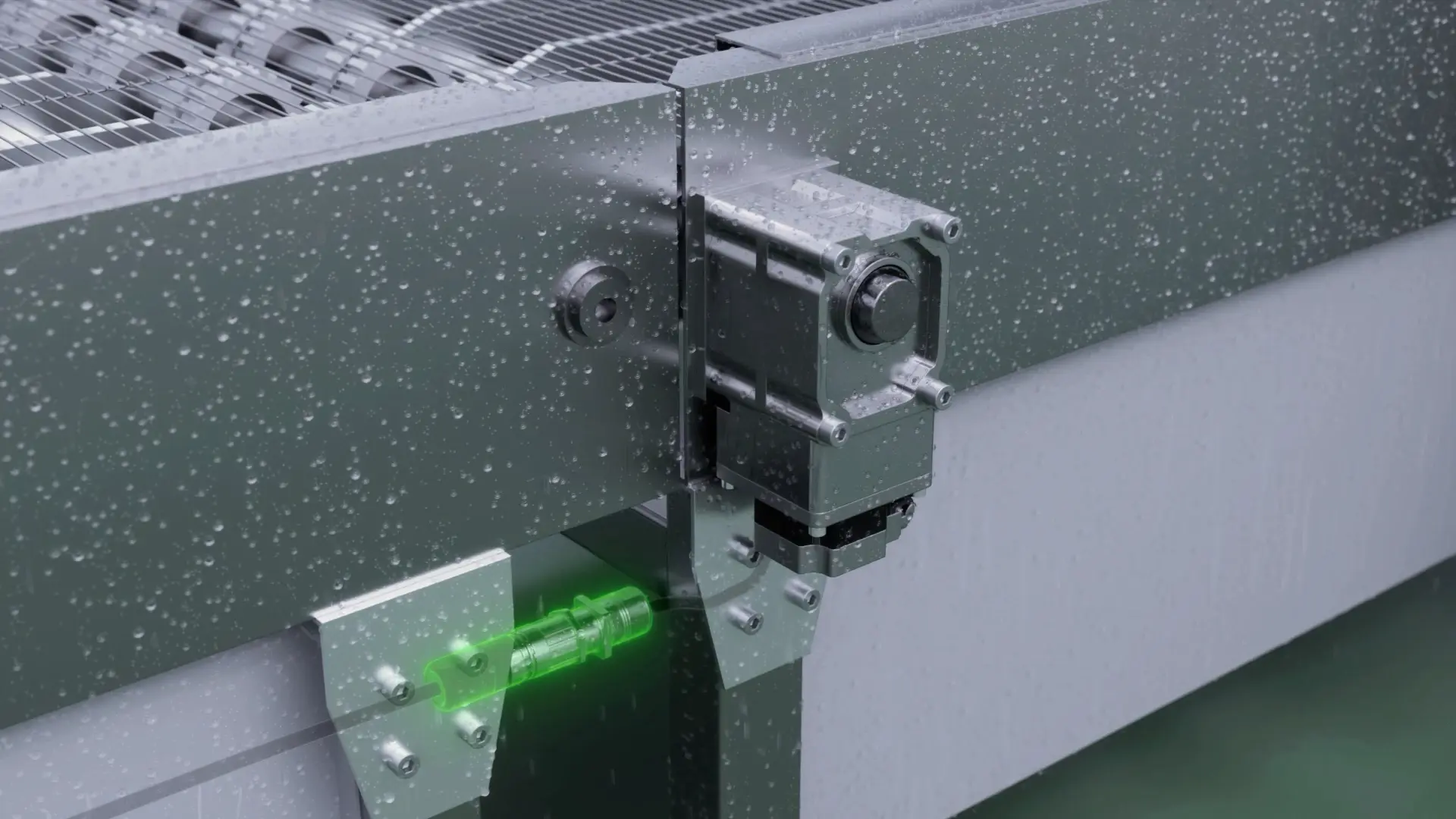

Application Example of Watertight, Dust-Resistant Connection Cables for BMU/BLE2 Series Brushless Motors Connector Type
IP66/IP67 Compliant Relay Connector Reduces the Effort Required for Cleaning
The watertight, dust-resistant connection cable uses IP66/IP67-compliant relay connectors that connect the motor side and the driver side. The power and signal lines are connected by a single connector, eliminating cable splitting and exposed lead wires in the relay section, thereby enhancing dustproof and waterproof performance.

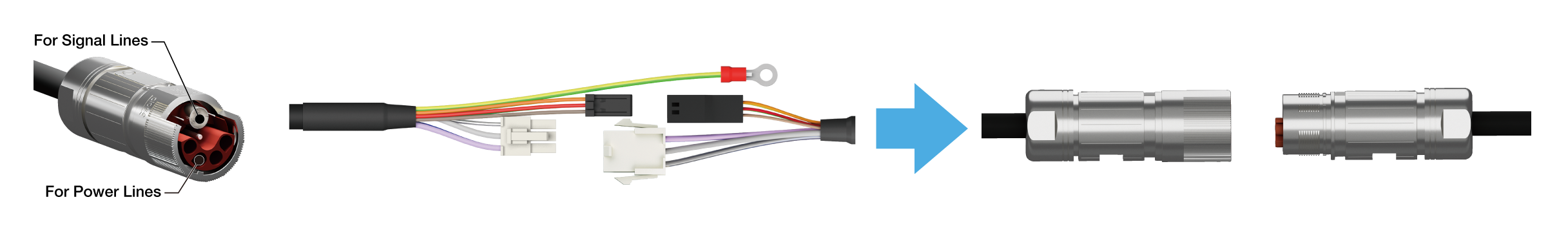

Power and signal lines are connected by a single connector. No more cable splitting or exposed lead wires in the relay section, ensuring dustproofing and waterproofing.
Panel Mounting Type for Easy Installation
Watertight, dust-resistant connection cables are available in standard connector type and panel mounting type. The panel mounting type is easy to install on a board.
The Right-Angle Hollow Shaft Hypoid JH Gearhead Allows for Space-Saving Installation

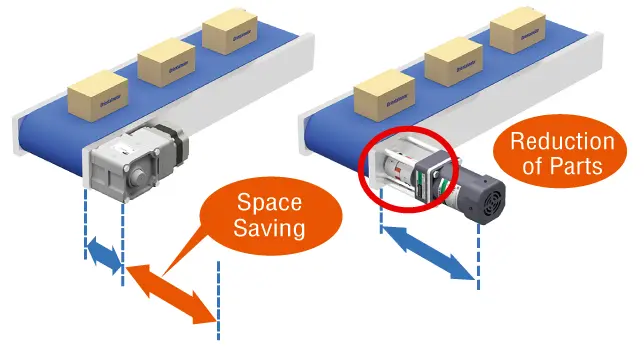

The brushless motor BMU/BLE2 Series compatible with watertight, dust-resistant connection cables offer a lineup with a right-angle hollow shaft hypoid JH gearhead with IP66 specifications. The hollow output shaft allows direct connection to the drive shaft, eliminating the need for couplings, belt pulleys, etc., which contributes to space savings and reduced component costs.
Application Example of Brushless Motor BMU/BLE2 Series Right-Angle Hollow Shaft Hypoid JH Gearhead

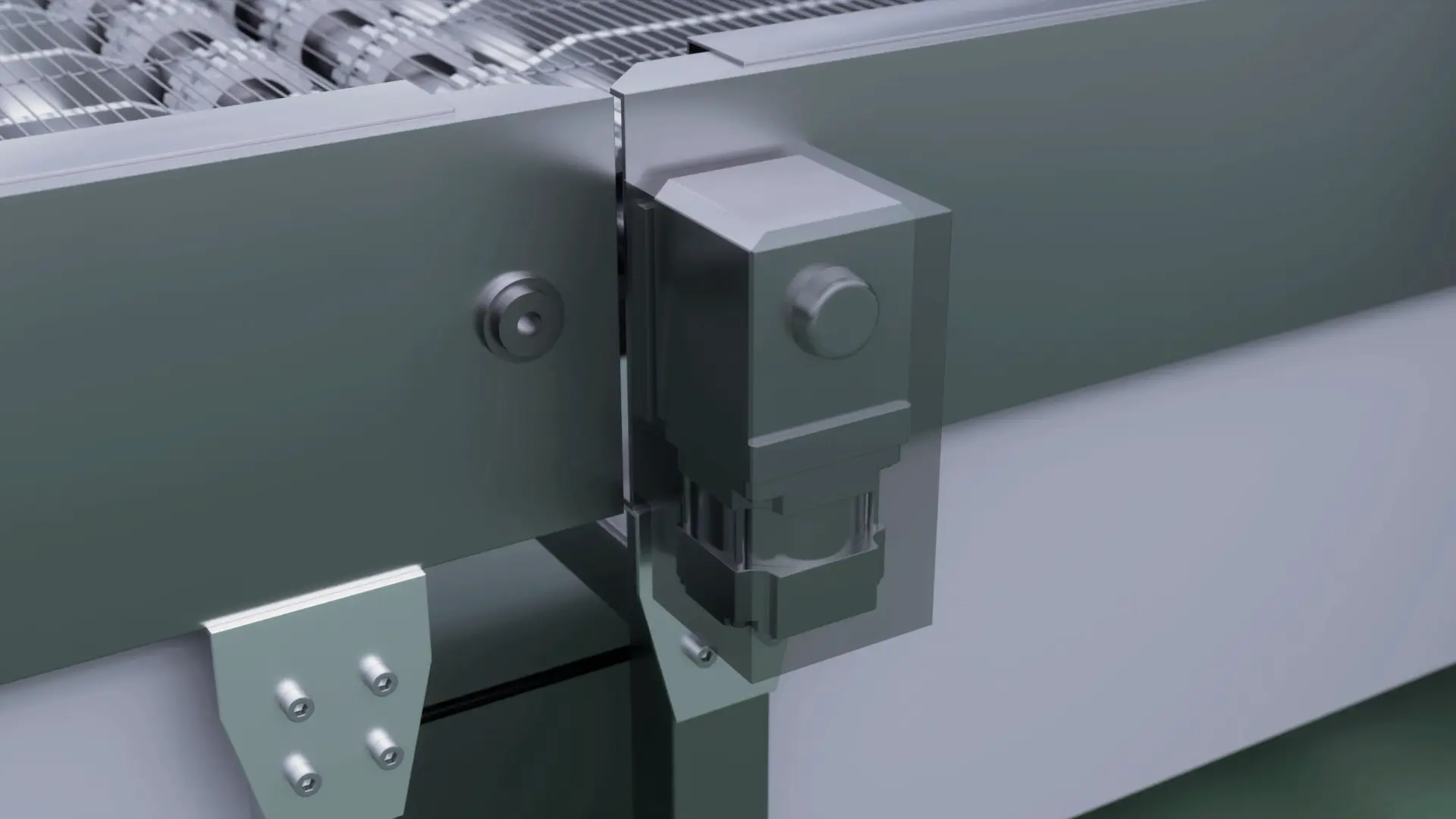

(Motor cover required)

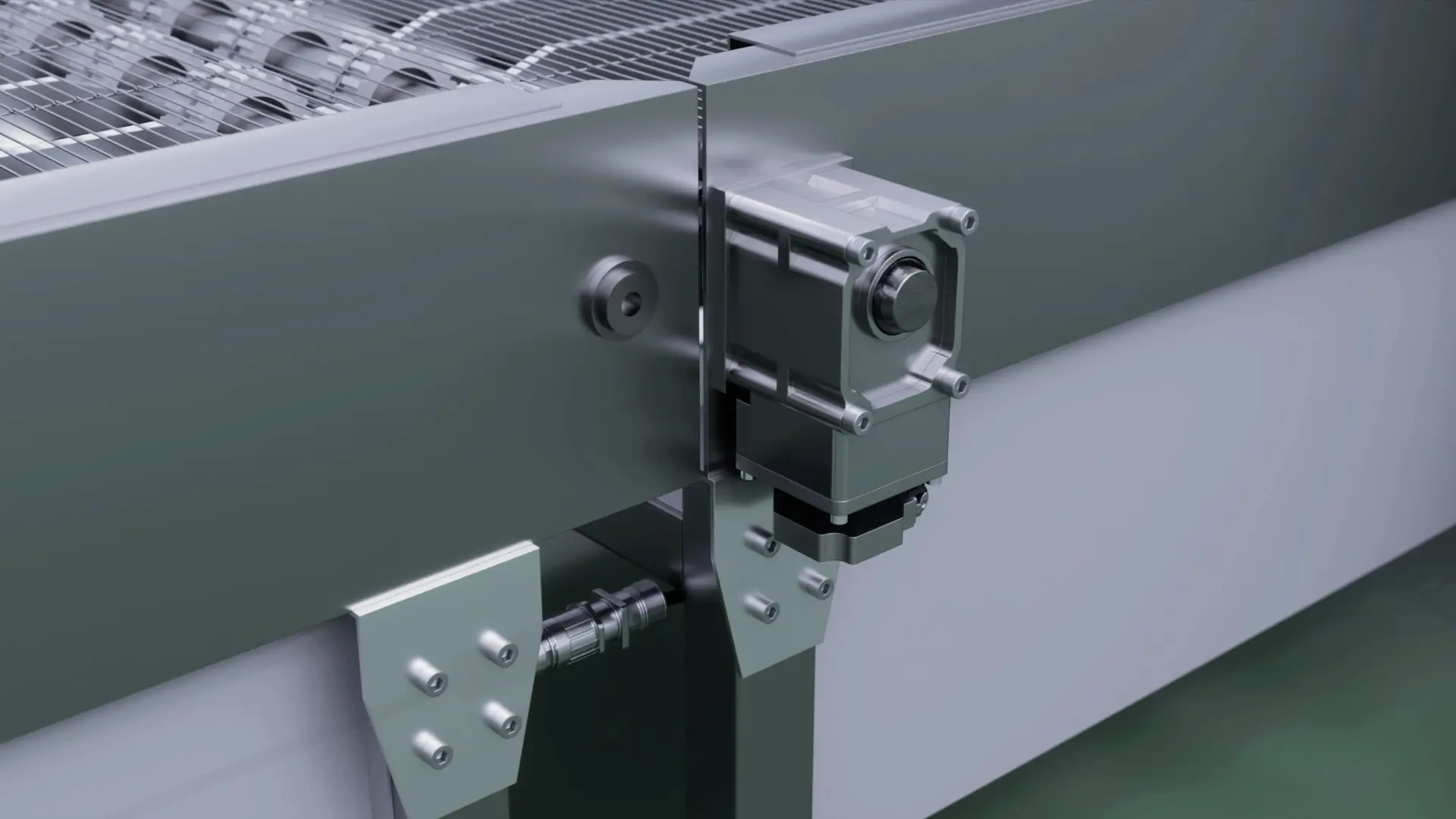

(Motor cover not required)

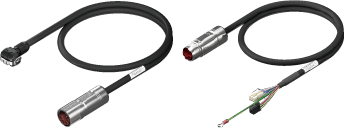

Proposed Product: Watertight, Dust-Resistant Connection Cable for BMU/BLE2 Series Connector Type
Combinable Motors
- BMU Series brushless motor connector type
- BLE2 Series brushless motor connector type
