Cables: For AR Series AC Input Pulse Input Type, DeviceNet Compatible

This cable can be used to connect the driver and controller.

[3] I/O Signal Cable

General-Purpose Type

• Multi-core shielded cable
• Double-ended discrete wire
• Includes ground wire with round terminal for easy shield grounding
• Select the number of lead wire cores that matches the desired functionality.

	Product Name	Length (m)	Number of Cores	AWG	Insulator Outer Diameter	Finished Outer Diameter
	CC06D005B-1	0.5	6	24	φ1.1	φ5.4
	CC06D010B-1	1
	CC06D015B-1	1.5
	CC06D020B-1	2
	CC10D005B-1	0.5	10			φ6.7
	CC10D010B-1	1
	CC10D015B-1	1.5
	CC10D020B-1	2
	CC12D005B-1	0.5	12			φ7.5
	CC12D010B-1	1
	CC12D015B-1	1.5
	CC12D020B-1	2
	CC16D005B-1	0.5	16
	CC16D010B-1	1
	CC16D015B-1	1.5
	CC16D020B-1	2

[4] I/O Signal Cable Connector Type Straight

Uses a noise-resistant shielded cable. Ground wire with round terminal for easy shield grounding.

	Product Name	Length (m)
	CC36D1E	1
	CC36D2E	2

[4] I/O Signal Cable Connector Type Right-Angle

Uses a noise-resistant shielded cable. Ground wire with round terminal for easy shield grounding.

	Product Name	Length (m)
	CC36D1AE	1
	CC36D2AE	2

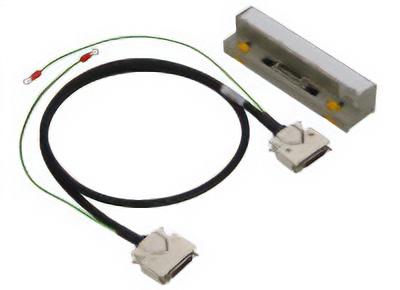

[5] I/O Signal Cable Connector - Terminal Block Conversion Unit, 1-Row Type

Conversion units that can connect a driver to a host controller or a sensor using a terminal block.
Uses a noise-resistant shielded cable. Ground wire with round terminal for easy shield grounding.

	Number of Positions	Product Name	Cable Length (m)
	36 Poles	CC36T10E	1

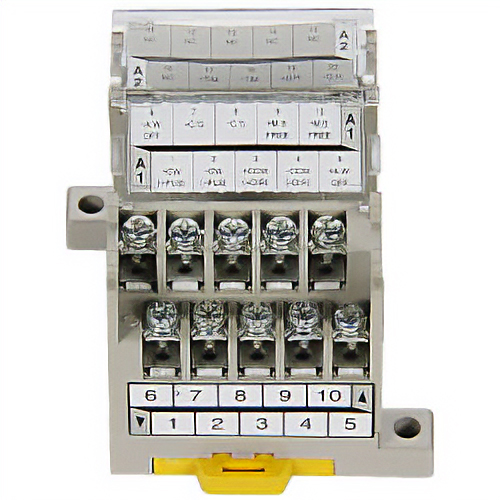

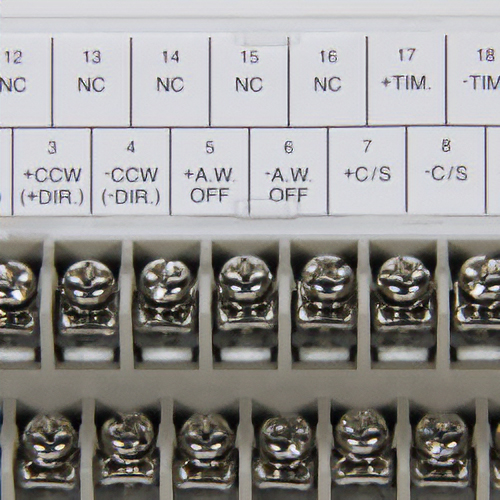

• Includes a signal name plate for easy, one-glance identification of driver signal names.
  Double-sided printing makes it possible to check the signal name even when the cover is opened or closed.



• Can improve the efficiency of wiring installations.
• Both DIN rail mount and screw mount are possible.
• Round terminals cannot be used.

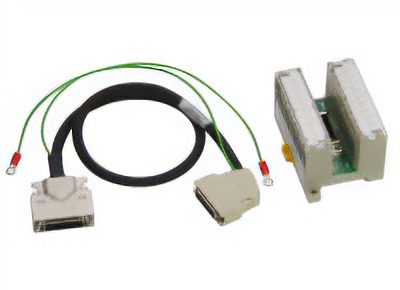

[5] I/O Signal Cable Connector - Terminal Block Conversion Unit 2-Row Type

Conversion units that can connect a driver to a host controller or a sensor using a terminal block.
Uses a noise-resistant shielded cable. Ground wire with round terminal for easy shield grounding.

	Number of Positions	Product Name	Cable Length (m)
	36 Poles	CC36WT05AE	0.5
		CC36WT10AE	1

• Includes a signal name plate for easy, one-glance identification of driver signal names. Can improve the efficiency of wiring installations.



• Both DIN rail mount and screw mount are possible.
• A set of right-angle connectors that can be used for space saving in the vertical direction.



• Screw up type used to prevent the product from falling even if the screw becomes loose.
• Crimp terminals can be used with both round and Y terminals.

[6] DC Power Supply Cable

Shielded cable for connection of DC power supply and electromagnetic brake. Ground wire with round terminal for easy shield grounding.

	Product Name	Length (m)	AWG	Insulator Outer Diameter	Finished Outer Diameter
	CC02D005-3	0.5	20	φ1.65	φ5.9
	CC02D010-3	1
	CC02D015-3	1.5
	CC02D020-3	2
	CC02D050-3	5

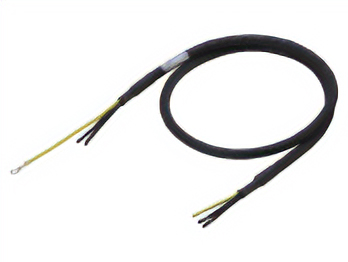

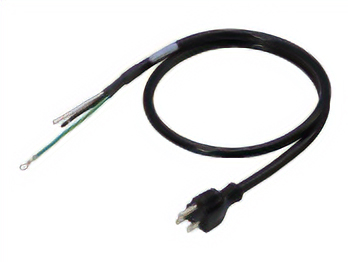

[7] AC Power Supply Cable

Cable for connection to AC power supply. Cables are available with or without a power supply plug.

	Product Name	Length (m)	Product Line	Power Supply Voltage
	CC01AC03P3	1	Plug included	Single-Phase 100-120 VAC
	CC02AC03P3	2
	CC03AC03P3	3
	CC01AC03N3	1	Plug not included	Single-Phase 100-120 VAC Single-Phase 200-240 VAC
	CC02AC03N3	2
	CC03AC03N3	3
	CC01AC04N3	1		Three-Phase 200-240 VAC
	CC02AC04N3	2
	CC03AC04N3	3
