Cables: For AR Series DC Input Built-in Controller Type
- *Use the flexible cable set for applications where cables are bent. Click here for note on use of flexible cables
→ Click here for cable product line
Connection Cable
This cable can be used to connect the motor with driver.
[1] Connection Cable Set for Motor, Flexible Connection Cable Set for Motor
| Length (m) | Connection Cable | Flexible Connection Cable | |
|---|---|---|---|
| Product Name | Product Name | ||
 |
0.5 | CC005VA2F2 | CC005VA2R2 |
| 1 | CC010VA2F2 | CC010VA2R2 | |
| 1.5 | CC015VA2F2 | CC015VA2R2 | |
| 2 | CC020VA2F2 | CC020VA2R2 | |
| 2.5 | CC025VA2F2 | CC025VA2R2 | |
| 3 | CC030VA2F2 | CC030VA2R2 | |
| 4 | CC040VA2F2 | CC040VA2R2 | |
| 5 | CC050VA2F2 | CC050VA2R2 | |
| 7 | CC070VA2F2 | CC070VA2R2 | |
| 10 | CC100VA2F2 | CC100VA2R2 | |
| 15 | CC150VA2F2 | CC150VA2R2 | |
| 20 | CC200VA2F2 | CC200VA2R2 | |
| 30 | CC300VA2F2 | CC300VA2R2 |
[1] Connection Cable Set for Motor/Electromagnetic Brake, Flexible Connection Cable Set for Motor/Electromagnetic Brake
| Length (m) | Connection Cable | Flexible Connection Cable | |
|---|---|---|---|
| Product Name | Product Name | ||
 |
0.5 | CC005VA2FB2 | CC005VA2RB2 |
| 1 | CC010VA2FB2 | CC010VA2RB2 | |
| 1.5 | CC015VA2FB2 | CC015VA2RB2 | |
| 2 | CC020VA2FB2 | CC020VA2RB2 | |
| 2.5 | CC025VA2FB2 | CC025VA2RB2 | |
| 3 | CC030VA2FB2 | CC030VA2RB2 | |
| 4 | CC040VA2FB2 | CC040VA2RB2 | |
| 5 | CC050VA2FB2 | CC050VA2RB2 | |
| 7 | CC070VA2FB2 | CC070VA2RB2 | |
| 10 | CC100VA2FB2 | CC100VA2RB2 | |
| 15 | CC150VA2FB2 | CC150VA2RB2 | |
| 20 | CC200VA2FB2 | CC200VA2RB2 | |
| 30 | CC300VA2FB2 | CC300VA2RB2 |
[2] Extension Cable Set Motor Side for Motor, Flexible Extension Cable Set Motor Side for Motor
| Length (m) | Connection Cable | Flexible Connection Cable | |
|---|---|---|---|
| Product Name | Product Name | ||
|
|
0.5 | CC005VA2F2 | CC005VA2R2 |
| 1 | CC010VA2F2 | CC010VA2R2 | |
| 1.5 | CC015VA2F2 | CC015VA2R2 | |
| 2 | CC020VA2F2 | CC020VA2R2 | |
| 2.5 | CC025VA2F2 | CC025VA2R2 | |
| 3 | CC030VA2F2 | CC030VA2R2 | |
| 4 | CC040VA2F2 | CC040VA2R2 | |
| 5 | CC050VA2F2 | CC050VA2R2 | |
| 7 | CC070VA2F2 | CC070VA2R2 | |
| 10 | CC100VA2F2 | CC100VA2R2 | |
| 15 | CC150VA2F2 | CC150VA2R2 | |
| 20 | CC200VA2F2 | CC200VA2R2 |
[2] Extension Cable Set Motor Side for Motor/Electromagnetic Brake, Flexible Extension Cable Set Motor Side for Motor/Electromagnetic Brake
| Length (m) | Connection Cable | Flexible Connection Cable | |
|---|---|---|---|
| Product Name | Product Name | ||
 |
0.5 | CC005VA2FBT2 | CC005VA2RBT2 |
| 1 | CC010VA2FBT2 | CC010VA2RBT2 | |
| 1.5 | CC015VA2FBT2 | CC015VA2RBT2 | |
| 2 | CC020VA2FBT2 | CC020VA2RBT2 | |
| 2.5 | CC025VA2FBT2 | CC025VA2RBT2 | |
| 3 | CC030VA2FBT2 | CC030VA2RBT2 | |
| 4 | CC040VA2FBT2 | CC040VA2RBT2 | |
| 5 | CC050VA2FBT2 | CC050VA2RBT2 | |
| 7 | CC070VA2FBT2 | CC070VA2RBT2 | |
| 10 | CC100VA2FBT2 | CC100VA2RBT2 | |
| 15 | CC150VA2FBT2 | CC150VA2RBT2 | |
| 20 | CC200VA2FBT2 | CC200VA2RBT2 |
Other Cables
This cable can be used to connect the driver and controller.
[3] I/O Signal Cable

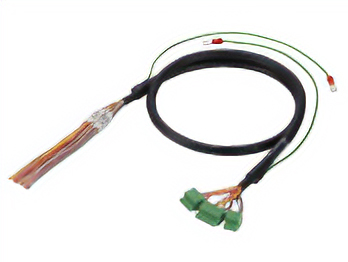

Connector Type
Shielded cable for I/O signal wiring of various speed controllers and drivers. Ground wire with round terminal for easy shield grounding. Marked tubes are provided for easy identification of lead wires.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
 |
CC21D005C-1 | 0.5 | 21 | 24 | φ1.2 | φ9.5 |
| CC21D010C-1 | 1 | |||||
| CC21D020C-1 | 2 |
General-Purpose Type
- Multi-core shielded cable
- Double-ended discrete wire
- Includes ground wire with round terminal for easy shield grounding
- Select the number of lead wire cores that matches the desired functionality.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC06D005B-1 | 0.5 | 6 | 24 | φ1.1 | φ5.4 |
| CC06D010B-1 | 1 | |||||
| CC06D015B-1 | 1.5 | |||||
| CC06D020B-1 | 2 | |||||
| CC10D005B-1 | 0.5 | 10 | φ6.7 | |||
| CC10D010B-1 | 1 | |||||
| CC10D015B-1 | 1.5 | |||||
| CC10D020B-1 | 2 | |||||
| CC12D005B-1 | 0.5 | 12 | φ7.5 | |||
| CC12D010B-1 | 1 | |||||
| CC12D015B-1 | 1.5 | |||||
| CC12D020B-1 | 2 | |||||
| CC16D005B-1 | 0.5 | 16 | ||||
| CC16D010B-1 | 1 | |||||
| CC16D015B-1 | 1.5 | |||||
| CC16D020B-1 | 2 |
[4] I/O Signal Cable Connector - Terminal Block Conversion Unit 1-Row Type
Conversion units that can connect a driver to a host controller or a sensor using a terminal block.
- Includes a signal name plate for easy, one-glance identification of driver signal names.
Double-sided printing makes it possible to check the signal name even when the cover is opened or closed. - Both DIN rail mount and screw mount are possible.
- Screw up type used to prevent the product from falling even if the screw becomes loose.
- Crimp terminals can be used with both round and Y terminals.
[5] RS-485 Communication Cable
This cable is to connect drivers with built-in controller type. It also connects the network converter to the drivers.
[6] FLEX Communication Cable
This cable is convenient for connecting FLEX compatible products to various equipment that is Modbus-controlled by RS-485 communication.
A general-purpose type with unbundled wires at one end of the cable and a dedicated type that can connect directly to the programmable display from Schneider Electric Japan Holdings Ltd. are available.
General-Purpose Type
The general-purpose type comes with a termination resistor.
Dedicated Type
The dedicated type cable has an integrated termination resistor.
[7] DC Power Supply Cable
Shielded cable for connection of DC power supply and electromagnetic brake. Ground wire with round terminal for easy shield grounding.
| Product Name | Length (m) |
AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|
|
CC02D005-3 | 0.5 | 20 | φ1.65 | φ5.9 |
| CC02D010-3 | 1 | ||||
| CC02D015-3 | 1.5 | ||||
| CC02D020-3 | 2 | ||||
| CC02D050-3 | 5 |
Cable Note When Wiring Flexible Cable
Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.
How to Fix the Cable
Fix the connector part in 2 places to prevent it from moving.
Wiring Length and Bending Radius of the Cable
Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.
Interference of the Cable
Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.
Cable Kinks
◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
