Cables: For BLE Series CC-Link
Use a connection cable if the motor and driver will be positioned far apart. Use a flexible connection cable in applications where the cable is bent and flexed repeatedly.
- Note:
- When extending the connection cable by splicing it as an extension cable, keep the total length of the cable to a max. of 20 m (using up to 3 cables max.)
- Standard Type Connection Cable
- Standard Type Flexible Connection Cable
- Electromagnetic Brake Type Connection Cable
- Electromagnetic Brake Type Flexible Connection Cable
- Connection Cable: DC Power Supply Cable
- General-Purpose Cable: Straight Type
- General-Purpose Cable: Right-Angle Type
- Connector - Terminal Block Conversion Unit
Standard Type Connection Cable
Standard Type Flexible Connection Cable

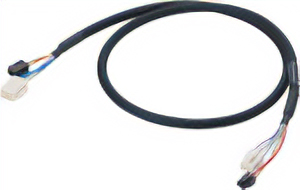

Electromagnetic Brake Type Connection Cable
Electromagnetic Brake Type Flexible Connection Cable
Connection Cable: DC Power Supply Cable
Shielded cable for connection of DC power supply and electromagnetic brake. Ground wire with round terminal for easy shield grounding.
| Product Name | Length (m) |
AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|
|
CC02D005-3 | 0.5 | 20 | φ1.65 | φ5.9 |
| CC02D010-3 | 1 | ||||
| CC02D015-3 | 1.5 | ||||
| CC02D020-3 | 2 | ||||
| CC02D050-3 | 5 |
General-Purpose Cable: Straight Type
General-Purpose Cable: Right-Angle Type
Connector - Terminal Block Conversion Unit
Cable Note When Wiring Flexible Cable
Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.
How to Fix the Cable
Fix the connector part in 2 places to prevent it from moving.
Wiring Length and Bending Radius of the Cable
Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.
Interference of the Cable
Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.
Cable Kinks
◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
