Cables: For BXII Series
Note
The BXII Series has been redesigned so that a single cable can be used to connect the motor and driver, starting with orders received on March 16, 2020.
In line with this change, the conversion cable included with the previous driver has been discontinued (the specifications and outline of the driver itself remain unchanged).
Please purchase a new connection cable when you purchase a driver with a new product name (the product name ends with a "2").
- * The conventional connection cable can be used as a relay.
BXII Series Product Name Change Notification
| Number in Illustration | Cable Name |
|---|---|
| [1] | Connection Cable |
| Flexible Connection Cable | |
| [2] | Connection Cable (for Relay) |
| Flexible Connection Cable (for Relay) |
- * Use a flexible cable set in applications where the cables are bent. Click here for notes on the use of flexible cables
| Number in Illustration | Cable Name |
|---|---|
| [3] | I/O Signal Cable Connector Type |
| I/O Signal Cable General-Purpose Type | |
| [4] | AC Power Supply Cable |
Connection Cable
This cable can be used to connect the motor with driver.

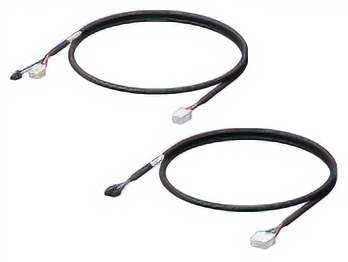

[1] Connection Cable, Flexible Connection Cable (Required)
Connection cable for connection between motor and driver.
The overall cable length should be 30.7 m or less (up to 3 cables in total, excluding the motor cable). Cables for the motor and encoder come as a set.
| Length (m) | Connection Cable | Flexible Connection Cable | |
|---|---|---|---|
| Product Name | Product Name | ||
![[1] Connection Cable, Flexible Connection Cable](/sites/default/files/image/products/accessories/cable/bx2/cable-bx2_02.webp)
|
0.3 | CC003SBF2 | - |
| 1.3 | CC013SBF2 | CC013SBR2 | |
| 2.3 | CC023SBF2 | CC023SBR2 | |
| 3.3 | CC033SBF2 | CC033SBR2 | |
| 5.3 | CC053SBF2 | CC053SBR2 | |
| 7.3 | CC073SBF2 | CC073SBR2 | |
| 10.3 | CC103SBF2 | CC103SBR2 | |
| 15.3 | CC153SBF2 | CC153SBR2 | |
| 20.3 | CC203SBF2 | CC203SBR2 | |
| 30.3 | CC303SBF2 | CC303SBR2 |
[2] Connection Cable (for relay), Flexible Connection Cable (for relay)
The overall cable length should be 30.7 m or less (up to 3 cables in total, excluding the motor cable). Cables for the motor and encoder come as a set.
- * The relay cable alone cannot connect the motor to the driver. Be sure to purchase a connection cable or flexible connection cable.
![[2] Connection Cable (for Relay), Flexible Connection Cable (for Relay)](/sites/default/files/image/products/accessories/cable/bx2/cable-bx2_03_en.webp)
Other Cables
Cable can be used to connect the driver and controller.
[3] I/O Signal Cable

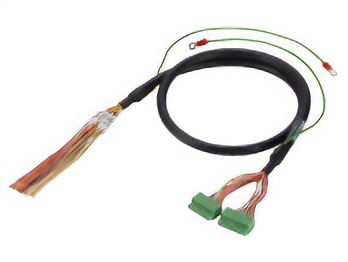

Connector Type
Shielded cable for I/O signal wiring of various speed controllers and drivers. Ground wire with round terminal for easy shield grounding. Marked tubes are provided for easy identification of lead wires.
| Product Name | Length (m) | Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC23D005C-1 | 0.5 | 23 | 24 | φ1.2 | φ9.5 |
| CC23D010C-1 | 1 | |||||
| CC23D020C-1 | 2 |
General-Purpose Type
- Multi-core shielded cable
- Double-ended discrete wire
- Includes ground wire with round terminal for easy shield grounding
- Select the number of lead wire cores that matches the desired functionality.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC06D005B-1 | 0.5 | 6 | 24 | φ1.1 | φ5.4 |
| CC06D010B-1 | 1 | |||||
| CC06D015B-1 | 1.5 | |||||
| CC06D020B-1 | 2 | |||||
| CC10D005B-1 | 0.5 | 10 | φ6.7 | |||
| CC10D010B-1 | 1 | |||||
| CC10D015B-1 | 1.5 | |||||
| CC10D020B-1 | 2 | |||||
| CC12D005B-1 | 0.5 | 12 | φ7.5 | |||
| CC12D010B-1 | 1 | |||||
| CC12D015B-1 | 1.5 | |||||
| CC12D020B-1 | 2 | |||||
| CC16D005B-1 | 0.5 | 16 | ||||
| CC16D010B-1 | 1 | |||||
| CC16D015B-1 | 1.5 | |||||
| CC16D020B-1 | 2 |
[4] AC Power Supply Cable
This cable is to connect driver and AC power supply. Cables are available with or without a power supply plug.
Cable Note When Wiring Flexible Cable
Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.
How to Fix the Cable
Fix the connector part in 2 places to prevent it from moving.
Wiring Length and Bending Radius of the Cable
Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.
Interference of the Cable
Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.
Cable Kinks
◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
