Cables: For NX Series
Connection Cable
This cable can be used to connect the motor with driver.
[1] Connection Cable Set/Flexible Connection Cable Set
A set of cables for motor, encoder, and electromagnetic brake (for electromagnetic brake motor).
For types that do not include a 1 m, 2 m, or 3 m cable, please choose a connection cable set.
| Length (m) | Connection Cable Set | Flexible Connection Cable Set | Connection Cable Set (For electromagnetic brake type) |
Flexible Connection Cable Set (For electromagnetic brake type) |
|---|---|---|---|---|
| Product Name | Product Name | Product Name | Product Name | |
| 1 | - | CC010VNR | - | CC010VNRB |
| 2 | - | CC020VNR | - | CC020VNRB |
| 3 | - | CC030VNR | - | CC030VNRB |
| 5 | CC050VNF | CC050VNR | CC050VNFB | CC050VNRB |
| 7 | CC070VNF | CC070VNR | CC070VNFB | CC070VNRB |
| 10 | CC100VNF | CC100VNR | CC100VNFB | CC100VNRB |
| 15 | CC150VNF | CC150VNR | CC150VNFB | CC150VNRB |
| 20 | CC200VNF | CC200VNR | CC200VNFB | CC200VNRB |
[2] Extension Cable Set/Flexible Extension Cable Set
A set of cables for motor, encoder, and electromagnetic brake (for electromagnetic brake motor).
If the length of the connection cable is insufficient, use the following extension cables to extend.
When using an extension, keep the overall cable length at 20 m or less.
| Length (m) | Extension Cable Set | Flexible Extension Cable Set | Extension Cable Set (For electromagnetic brake type) |
Flexible Extension Cable Set (For electromagnetic brake type) |
|---|---|---|---|---|
| Product Name | Product Name | Product Name | Product Name | |
| 1 | CC010VNFT | CC010VNRT | CC010VNFBT | CC010VNRBT |
| 2 | CC020VNFT | CC020VNRT | CC020VNFBT | CC020VNRBT |
| 3 | CC030VNFT | CC030VNRT | CC030VNFBT | CC030VNRBT |
| 5 | CC050VNFT | CC050VNRT | CC050VNFBT | CC050VNRBT |
| 7 | CC070VNFT | CC070VNRT | CC070VNFBT | CC070VNRBT |
| 10 | CC100VNFT | CC100VNRT | CC100VNFBT | CC100VNRBT |
| 15 | CC150VNFT | CC150VNRT | CC150VNFBT | CC150VNRBT |
Other Cables
This cable can be used to connect the driver and controller.

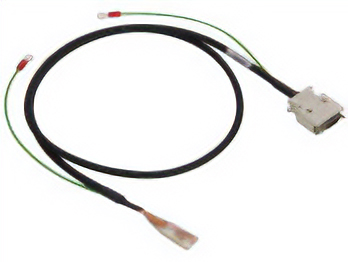

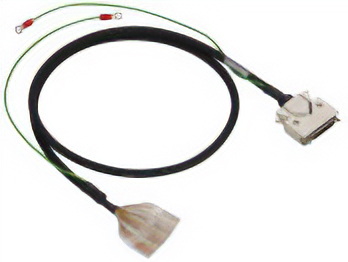

[3] I/O Signal Cable General-Purpose Type: Straight
Uses a noise-resistant shielded cable. Ground wire with round terminal for easy shield grounding.
![[3] I/O Signal Cable General-Purpose Type: Straight](/sites/default/files/image/products/accessories/cable/nx/cable-nx_04.webp)
![[3] I/O Signal Cable General-Purpose Type: Straight](/sites/default/files/image/products/accessories/cable/nx/cable-nx_05.webp)

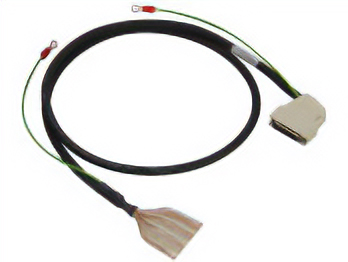

[3] I/O Signal Cable General-Purpose Type: Right-Angle
Uses a noise-resistant shielded cable. Ground wire with round terminal for easy shield grounding.
![[3] I/O Signal Cable General-Purpose Type: Right-Angle](/sites/default/files/image/products/accessories/cable/nx/cable-nx_06.webp)

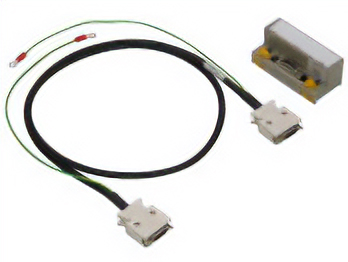

[4] Connector - Terminal Block Conversion Unit 1-Row Type
These are conversion units that can connect a driver to a host controller or a sensor using a terminal block.
Uses a noise-resistant shielded cable. Ground wire with round terminal for easy shield grounding.
-

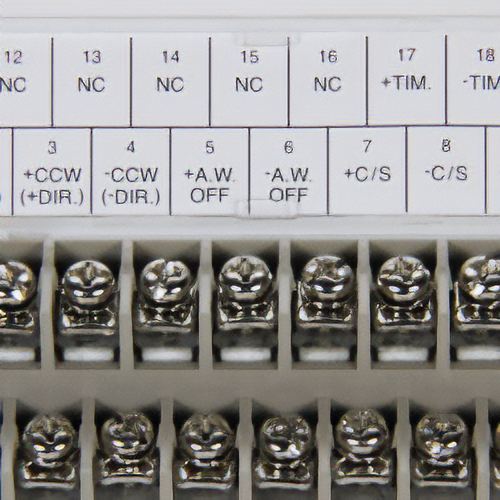

Includes a signal name plate for easy, one-glance identification of driver signal names.
Double-sided printing makes it possible to check the signal name even when the cover is opened or closed.
- Can improve the efficiency of wiring installations.
- Both DIN rail mount and screw mount are possible.
- Round terminals cannot be used.

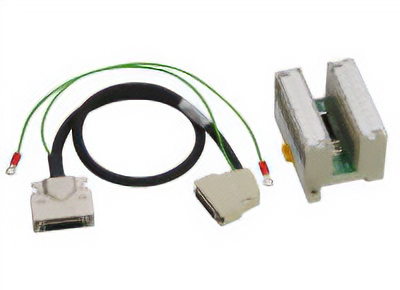

[4] Connector - Terminal Block Conversion Unit 2-Row Type
These are conversion units that can connect a driver to a host controller or a sensor using a terminal block.
Uses a noise-resistant shielded cable. Ground wire with round terminal for easy shield grounding.
| Number of Positions | Product Name | Cable Length (m) |
|
|---|---|---|---|
|
36 Poles | CC36WT05AE | 0.5 |
| CC36WT10AE | 1 |
-

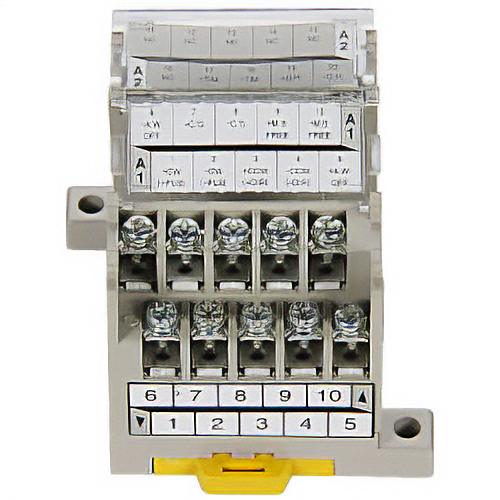

Includes a signal name plate for easy, one-glance identification of driver signal names. Can improve the efficiency of wiring installations.
- Both DIN rail mount and screw mount are possible.
-
A set of right-angle connectors that can be used for space saving in the vertical direction.
- Screw up type used to prevent the product from falling even if the screw becomes loose.
- Crimp terminals can be used with both round and Y terminals.
[5] General-Purpose Cables for DC Power Supply
Shielded cables for connecting DC power supply and electromagnetic brake. Ground wire with round terminal for easy shield grounding.
| Product Name | Length (m) |
AWG | Insulator Outer Diameter |
Finished Outer Diameter |
|
|---|---|---|---|---|---|
![[5] General-Purpose Cable for DC Power Supply](/sites/default/files/image/products/accessories/cable/nx/cable-nx_13.webp)
|
CC02D005-3 | 0.5 | 20 | φ1.65 | φ5.9 |
| CC02D010-3 | 1 | ||||
| CC02D015-3 | 1.5 | ||||
| CC02D020-3 | 2 | ||||
| CC02D050-3 | 5 |
Cable Note When Wiring Flexible Cable
Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.
How to Fix the Cable
Fix the connector part in 2 places to prevent it from moving.
Wiring Length and Bending Radius of the Cable
Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.
Interference of the Cable
Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.
Cable Kinks
◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
