Cables: For RKII Series Pulse Input Type
- *Be sure to use a connection cable for the connection between the motor and the driver.
For types that do not include a 1 m, 2 m, or 3 m cable, please choose a connection cable set.
(The electromagnetic brake cable and the encoder cable from the motor cannot be connected directly to the driver.)
- *Use the flexible cable set for applications where cables are bent. Click here for note on use of flexible cables
| Number in Illustration | Cable Name |
|---|---|
| [3] | I/O Signal Cable Connector Type |
| I/O Signal Cable General-Purpose Type | |
| [4] | I/O Signal Cable Connector - Terminal Block Conversion Unit 1-Row Type |
| [5] | AC Power Supply Cable |
→ Click here for cable product line
Connection Cable
This cable can be used to connect the motor with driver.
Connection Cable Set for Motor, Flexible Connection Cable Set for Motor
For types that do not include a 1 m, 2 m, or 3 m cable, please choose a connection cable set.
(The electromagnetic brake cable and the encoder cable from the motor cannot be connected directly to the driver.)
Connection Cable Set for Motor/Electromagnetic Brake, Flexible Connection Cable Set for Motor/Electromagnetic Brake
For types that do not include a 1 m, 2 m, or 3 m cable, please choose a connection cable set.
(The electromagnetic brake cable and the encoder cable from the motor cannot be connected directly to the driver.)
[2] Extension Cable Set for Motor, Flexible Extension Cable Set for Motor
[2] Extension Cable Set for Motor/Electromagnetic Brake, Flexible Extension Cable Set for Motor/Electromagnetic Brake
| Length (m) | Connection Cable | Flexible Connection Cable | |
|---|---|---|---|
| Product Name | Product Name | ||
![[2] Extension Cable Set for Motor/Electromagnetic Brake, Flexible Extension Cable Set for Motor/Electromagnetic Brake](/sites/default/files/image/products/accessories/cable/rk2-pulse/cable-rk2-pulse_04_en.webp)
|
1 | CC010VPFBT | CC010VPRBT |
| 2 | CC020VPFBT | CC020VPRBT | |
| 3 | CC030VPFBT | CC030VPRBT | |
| 5 | CC050VPFBT | CC050VPRBT | |
| 7 | CC070VPFBT | CC070VPRBT | |
| 10 | CC100VPFBT | CC100VPRBT | |
| 15 | CC150VPFBT | CC150VPRBT |
Other Cables
This cable can be used to connect the driver and controller.

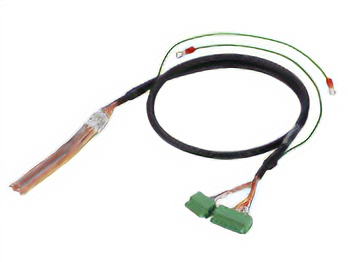

[3] I/O Signal Cable
Connector Type
Shielded cable for I/O signal wiring of various speed controllers and drivers. Ground wire with round terminal for easy shield grounding. Marked tubes are provided for easy identification of lead wires.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC15D005C-1 | 0.5 | 15 | 24 | φ1.1 | φ7.5 |
| CC15D010C-1 | 1 | |||||
| CC15D020C-1 | 2 |
General-Purpose Type
- Multi-core shielded cable
- Double-ended discrete wire
- Includes ground wire with round terminal for easy shield grounding
- Select the number of lead wire cores that matches the desired functionality.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC06D005B-1 | 0.5 | 6 | 24 | φ1.1 | φ5.4 |
| CC06D010B-1 | 1 | |||||
| CC06D015B-1 | 1.5 | |||||
| CC06D020B-1 | 2 | |||||
| CC10D005B-1 | 0.5 | 10 | φ6.7 | |||
| CC10D010B-1 | 1 | |||||
| CC10D015B-1 | 1.5 | |||||
| CC10D020B-1 | 2 | |||||
| CC12D005B-1 | 0.5 | 12 | φ7.5 | |||
| CC12D010B-1 | 1 | |||||
| CC12D015B-1 | 1.5 | |||||
| CC12D020B-1 | 2 | |||||
| CC16D005B-1 | 0.5 | 16 | ||||
| CC16D010B-1 | 1 | |||||
| CC16D015B-1 | 1.5 | |||||
| CC16D020B-1 | 2 |

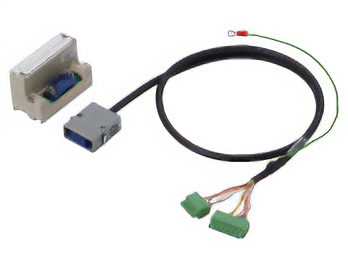

[4] I/O Signal Cable: Connector - Terminal Block Conversion Unit 1-Row Type
These are conversion units that can connect a driver to a host controller or a sensor using a terminal block.
- Includes a signal name plate for easy, one-glance identification of driver signal names.
Double-sided printing makes it possible to check the signal name even when the cover is opened or closed. - Both DIN rail mount and screw mount are possible.
- Screw up type used to prevent the product from falling even if the screw becomes loose.
- Crimp terminals can be used with both round and Y terminals.
[5] AC Power Supply Cable
This cable is to connect driver and AC power supply. Cables are available with or without a power supply plug.
Cable Note When Wiring Flexible Cable
Do not bend the cable at the connector. Stress applied to the connectors and terminals causes poor contact and disconnection.
How to Fix the Cable
Fix the connector part in 2 places to prevent it from moving.
Wiring Length and Bending Radius of the Cable
Wiring should be installed at an appropriate length, so that cables are not pulled during movement.
In addition, the bending radius (R) should be 6 times the cable diameter min.
Interference of the Cable
Wire the cables in the cable holder without bringing them into contact with each other. This will add stress to the cable, and cause it to break prematurely. Please check note on cable holders carefully before use.
Cable Kinks
◇Please wire without kinks in the cable. Kinking in a twisted state can cause premature disconnection. After wiring, confirm that there are no kinks in the cable, using the print on the cable surface as a reference.
