Induction Motors
2IK6EB-9S
コンビギヤードモーター
| Phân loại sản phẩm | Tên sản phẩm | Giá niêm yết | Giá niêm yết | Ngày vận chuyển |
|---|---|---|---|---|
| コンビギヤードモーター | 2IK6EB-9S | SGD 240 | USD 192 | Sản phẩm dự kiến ngừng sản xuất (29.1.2027 Đơn hàng cuối cùng) |
- *Vui lòng liên hệ với chúng tôi về việc mua sản phẩm.
- *Sản phẩm sẽ ngừng sản xuất vào ngày 31.3.2027. Vui lòng đặt hàng trước thời hạn này.
Bao gồm
- Motor: Capacitor, Capacitor Cap
Gearhead: Mounting Screws
Thông số kỹ thuật
Kích thước
Motor/Gearhead
Capacitor
Tải dữ liệu
Các thông số kỹ thuật khác
General Specifications
| Item | Specifications |
|---|---|
| Insulation Resistance | After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger. |
| Dielectric Strength | After continuous rated operation at normal ambient temperature and humidity, no abnormalities were observed even with an application of 1.5 kV at 50 Hz or 60 Hz between the coils and the case for 1 minute. |
| Temperature Rise | A gearhead or equivalent heat sink* connected to the motor and the winding temperature rise is measured at 80 °C max. using the resistance change method after continuous rated operation under normal ambient temperature and humidity. (Three-Phase type is 70 °C max.) |
| Thermal Class | 130(B) |
| Overheat Protective Device | The 6 W type is impedance protected Other types: Built-in thermal protector (Automatic return type) Open: 130 ± 5 °C, Return: 82 ± 15 °C Three-Phase 15 W Type Open: 130 ± 5 °C, Return: 90 ± 15 °C |
| Operating Ambient Temperature | Single-phase 100 V, single-phase 200 V, three-phase 200 V: -10~+50 °C (Non-freezing) Other voltages: -10~+40 °C (Non-freezing) |
| Operating Ambient Humidity | 85 % max. (Non-condensing) |
| Degree of Protection | IP65 (Excluding mounting surface of the round shaft type) |
- *Heat Sink Size (Material: Aluminum)
| Motor Type (Output power) | Size (mm) | Thickness (mm) |
|---|---|---|
| 6 W Type | 115 x 115 | 5 |
| 15 W Type | 125 x 125 | |
| 25 W Type | 135 x 135 | |
| 40 W Type | 165 x 165 |
Permissible Radial Load and Permissible Axial Load of Gearhead
| Product Name | Gear Ratio | Maximum Permissible Torque N·m |
Permissible Radial Load N | Permissible Axial Load N |
|
|---|---|---|---|---|---|
| From Shaft End 10 mm |
From Shaft End 20 mm |
||||
| 2GN□S | 3~18 | 3.0 | 50 | 80 | 30 |
| 25~180 | 120 | 180 | |||
| 3GN□S | 3~18 | 5.0 | 80 | 120 | 40 |
| 25~180 | 150 | 250 | |||
| 4GN□S | 3~18 | 8.0 | 100 | 150 | 50 |
| 25~180 | 200 | 300 | |||
| 5GN□S | 3~18 | 10 | 250 | 350 | 100 |
| 25~180 | 300 | 450 | |||
Tiêu chuẩn
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with safety standards for each of our product models can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

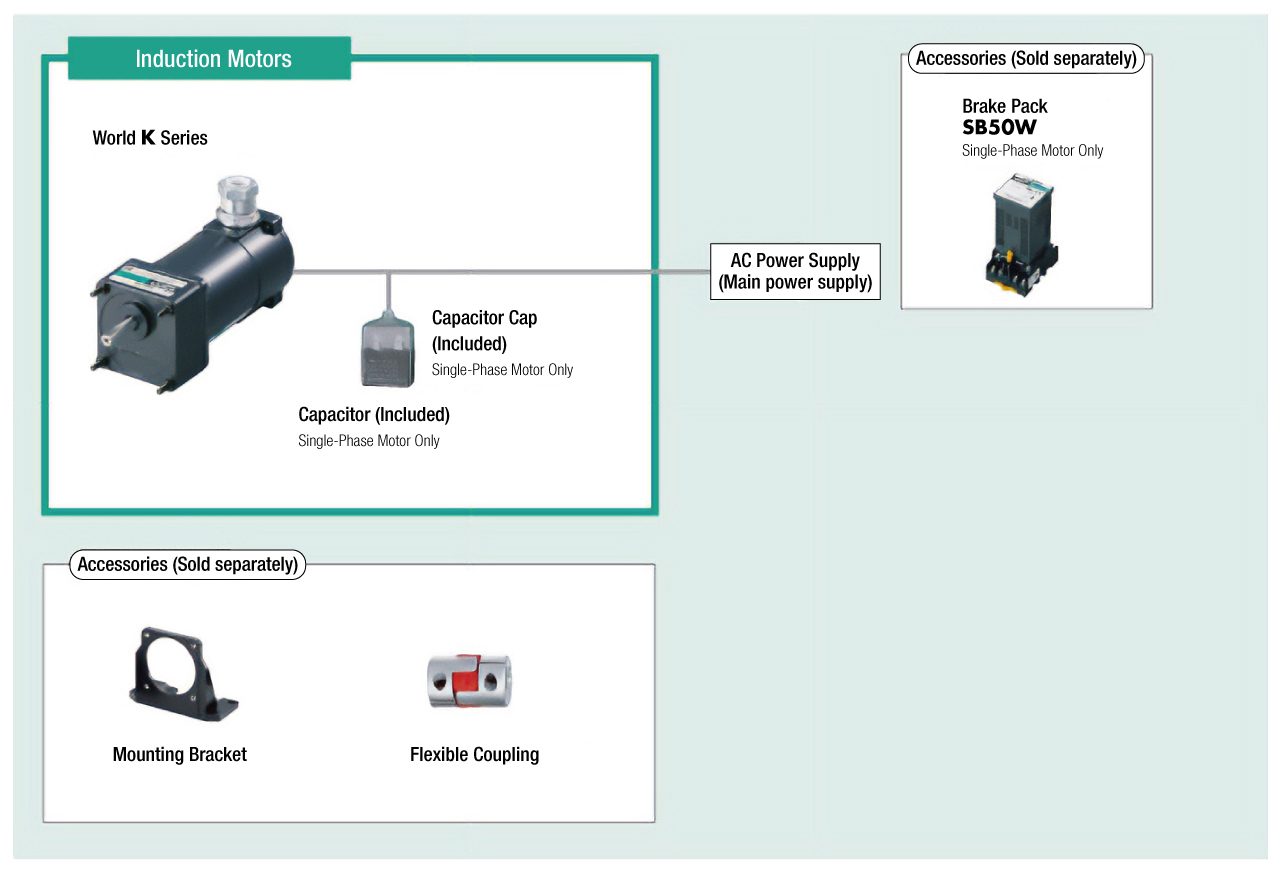

Cấu hình hệ thống
Những sản phẩm tương tự
Brake Pack
| Products | Features | |
|---|---|---|
SB50W Series
|
Features |
This is a brake pack that enables instantaneous stopping, bidirectional rotation, and brake control of the motor, all in 1 unit.
|
