Other Peripheral Equipment Worm Gearhead
AGW2G10H-B
Worm Gearhead
| Phân loại sản phẩm | Tên sản phẩm | Giá niêm yết | Giá niêm yết | Ngày vận chuyển |
|---|---|---|---|---|
| Worm Gearhead | AGW2G10H-B | SGD 523 | USD 418 | 16 Working Days |
| Miêu tả | It can be combined with a 30 W brushless motor equipped with a parallel shaft gearhead with a mounting dimension of 60 mm. |
|---|
Bao gồm
- Gearhead: Parallel Key, Safety Cover
Thông số kỹ thuật
Kích thước
Worm Gearhead
Tải dữ liệu
Các thông số kỹ thuật khác
General Specifications
| Operating Environment | Ambient Temperature: 0* to +50 °C (Non-freezing) Ambient Humidity: 85 % max. (Non-condensing) Altitude: Up to 1000 m above sea level Atmosphere: No corrosive gases or dust. Do not expose to water or oil. |
|---|---|
| Storage Conditions Shipping Environment |
Ambient Temperature: -20 to +70 °C (Non-freezing) Ambient Humidity: 85 % max. (Non-condensing) Altitude: Up to 3000 m above sea level Atmosphere: No corrosive gases or dust. Do not expose to water or oil. |
- *The following combinations have a lower operating ambient temperature limit of +10 °C.
- Parallel Shaft Gearhead: Gear ratio 5
- Worm Gearhead: Gear ratio 10
Transmission Efficiency
| Product Name | Rotation Speed of Motor Output Shaft | Gear Ratio to be Combined | ||||
|---|---|---|---|---|---|---|
| 5 | 10 | 15 | 20 | 30 | ||
| AGW2G10H-B | 2 r/min∼ | 44 % | 55 % | 60 % | ||
| 3000 r/min | ||||||
| 4000 r/min | 32 % | |||||
| AGW2G20H-B | 2 r/min∼ | 32 % | 37 % | 40 % | - | |
| 3000 r/min | ||||||
| 4000 r/min | 29 % | |||||
Note
- ·The transmission efficiency in the table above is the value at normal ambient temperature. The transmission efficiency of the gearhead varies depending on the ambient temperature.
- ·Care should be taken when using in a low temperature environment as the transmission efficiency will drop along with the output torque.
Calculating the Permissible Radial Load for Gearhead

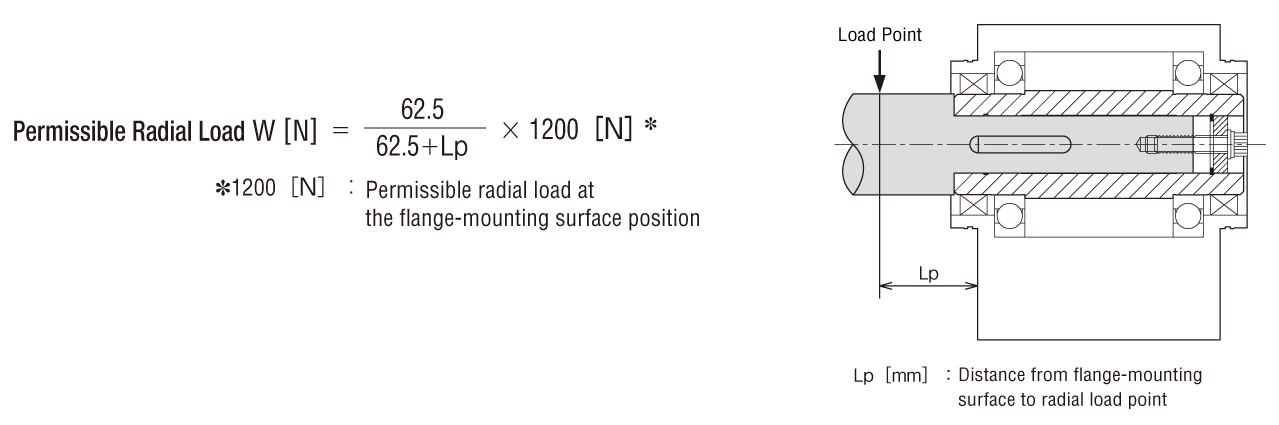

When the end of the load shaft being driven is not supported by a bearing unit as shown in the figure below, calculate the permissible radial load using the following formula.
(This is the mechanism in which the radial load is in the most severe condition.)
Tiêu chuẩn
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
