Electric Lifting Columns EL Series

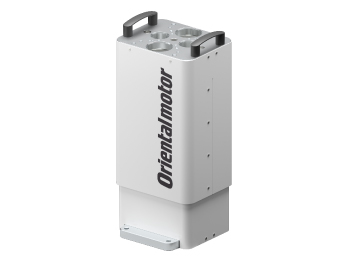

EL605AZMK
Electric Lifting Columns
| Phân loại sản phẩm | Tên sản phẩm | Giá niêm yết | Giá niêm yết | Ngày vận chuyển |
|---|---|---|---|---|
| Electric Lifting Columns | EL605AZMK | SGD 7,288 | USD 5,830 | 20 Working Days |
Bao gồm
- Electric Lifting Columns: None
Thông số kỹ thuật
Đặc trưng
Positioning Distance-Positioning Time
Operating-Thrust
Displacement by Load Moment (Reference value)
Kích thước
Electric Lifting Columns
Tải dữ liệu
Các thông số kỹ thuật khác
Motor General Specifications
| Operating Environment (when operation) | Ambient Temperature | 0∼+40°C (Non-freezing)∗ |
|---|---|---|
| Ambient Humidity | 85% max. (Non-condensing) | |
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | |
| Multi-Rotation Detection Range in Power OFF State | ±900 rotations (1800 rotations) | |
- ∗
- According to Oriental Motor’s measurement conditions
Electromagnetic Brake Specifications
| Type | Power off activated type |
|---|---|
| Power Supply Voltage | 24 V DC±5%∗ |
| Power Supply Current [A] | 0.25 |
| Time Rating | Continuous |
- ∗ The specification for the cable type products with an electromagnetic brake is 24 VDC±4 % when extending to 20 m using the connection cable.
Travel Direction
The factory default setting for the table travel direction is as follows.
