Electric Linear Slides EZS Series for Clean Room Use
EZSM6CLE060AZMC
Actuator
Connection Cable for Motor
Connection Cable for Encoder
Connection Cable For Electromagnetic Brake
| Phân loại sản phẩm | Tên sản phẩm | Giá niêm yết | Giá niêm yết | Ngày vận chuyển |
|---|---|---|---|---|
| Actuator | EZSM6CLE060AZMC | SGD 1,853 | USD 1,482 | 16 Working Days |
• Driver: Select the driver that best describes your needs from the [Driver Introduction].
• The motor cable and electromagnetic brake cable from the motor cannot be connected directly to the driver. When connecting to the driver, use a connection cable.
Bao gồm
- Actuator: Bolt for Fixing
Thông số kỹ thuật
Đặc trưng
Positioning Distance - Positioning Time
Operating Speed - Load Mass

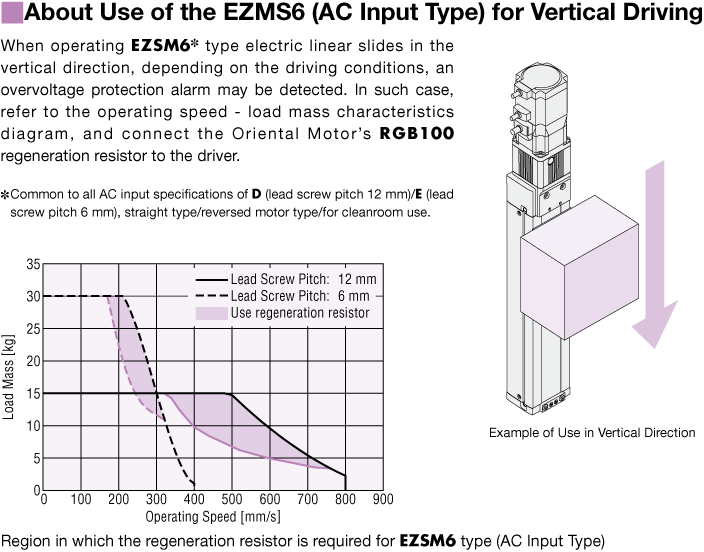

About this vertical drive
Kích thước
Actuator
Connection Cable for Motor (When Selected)
Flexible Connection Cable for Motor (When Selected)
Connection Cables for Encoder/ Length: 5m or less (When Selected)
Connection Cables for Encoder/ Length: 7m or more (When Selected)
Flexible Connection Cables for Encoder/ Length: 5m or less (When Selected)
Flexible Connection Cables for Encoder/ Length: 7m or more (When Selected)
Connection Cable For Electromagnetic Brake (When Selected)
Flexible Connection Cable For Electromagnetic Brake (When Selected)
Tải dữ liệu
Các thông số kỹ thuật khác
General Specifications (Motor)
| Item | AC Input | DC Input | |
|---|---|---|---|
| Thermal Class | 130(B) [UL/CSA is certified at 105 (A).] |
||
| Insulation Resistance |
100 MΩ or more when a 500 VDC megger is applied between the following places:
|
||
| Dielectric Strength |
Sufficient to withstand the following for 1 minute.
|
Sufficient to withstand the following for 1 minute.
|
|
| Operating Environment (When operating) |
Ambient Temperature | 0~+40 °C (Non-freezing)*3 | |
| Ambient Humidity | 85 % max. (Non-condensing) | ||
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | ||
| Degree of Protection*2 | IP66 (Except for mounting surface and connector parts) | ||
| Multi-rotation detection range in a de-energized state |
± 900 revolutions (1800 revolutions) | ||
- *1
- (Only for types with electromagnetic brake)
- *2
- Motor only. The degree of protection of the electric linear slide is IP20.
- *3
- According to Oriental Motor’s measurement conditions.
Note
- Disconnect the motor and driver when measuring insulation resistance, or conducting a dielectric strength test.
Also, do not perform these tests on the ABZO sensor part of the motor.
Electromagnetic Brake Specifications
| Product Name | EZSM3, EZSM4 |
EZSM6 |
|---|---|---|
| Type | Power off activated type | |
| Power Supply Voltage | 24 V DC ± 5 %* | |
| Power Supply Current [A] | 0.08 | 0.25 |
| Time Rating | Continuous | |
- *For the type with an electromagnetic brake, a 24 V DC ± 4 % specification applies if the wiring distance between the motor and driver is extended to 20 m using a cable.
Travel Direction
At the time of shipment, the travel direction of the table is set as follows.
Tiêu chuẩn
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
