AC Speed Control Motor
SCM540KJCM-5H15B
Combi geared motor
Sản phẩm này không còn có sẵn để bán
| Phân loại sản phẩm | Tên sản phẩm | Giá niêm yết | Giá niêm yết | Ngày vận chuyển |
|---|---|---|---|---|
| Combi geared motor | SCM540KJCM-5H15B | SGD 755 | USD 604 | Sản phẩm đã ngừng sản xuất (31.3.2026 đã ngừng sản xuất) |
Bao gồm
- Motor: None
Gearhead: Mounting Screws, Parallel Key, Safety Cover
Thông số kỹ thuật
Kích thước
Motor/Gearhead
Tải dữ liệu
Các thông số kỹ thuật khác
Permissible Radial Load and Permissible Axial Load of Gearhead
| Gear Ratio | 10 | 15 | 20 | 30 | 50 | 100 | 200 | ||
|---|---|---|---|---|---|---|---|---|---|
| Permissible Radial Load [N] *1 | Hollow Shaft*2 | 10 mm From Mounting Surface | 415 | 554 | 692 | 923 | 1112 | 1196 | 1291 |
| 20 mm From Mounting Surface | 363 | 484 | 605 | 806 | 971 | 1045 | 1127 | ||
| Solid Shaft | 10 mm From the End of the Output Shaft | 378 | 504 | 630 | 840 | 1011 | 1089 | 1174 | |
| 20 mm From the End of the Output Shaft | 481 | 641 | 802 | 1069 | 1287 | 1385 | 1495 | ||
| Permissible Axial Load [N] | 108 | 147 | 186 | 245 | 294 | 324 | 343 | ||
- *1
- The load position is shown below.
- *2
- For calculations of the radial load from every distance for the hollow shaft type, refer to "Permissible radial load calculation for hollow shaft type" below.

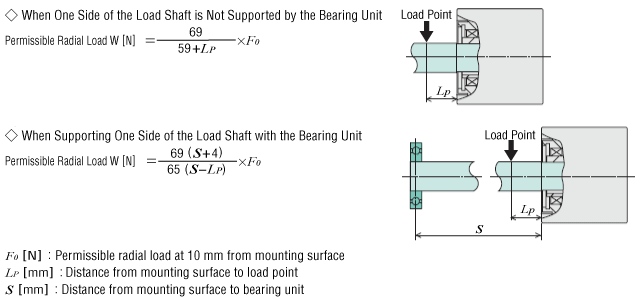

Calculating the Permissible Radial Load for Hollow Shaft Type
The formula for calculating the permissible radial load varies depending on the mechanism.
Tiêu chuẩn
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with safety standards for each of our product models can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
