Electromagnetic Brake Motors
BHI62SMT-G2
Motor
| Phân loại sản phẩm | Tên sản phẩm | Giá niêm yết | Giá niêm yết | Ngày vận chuyển |
|---|---|---|---|---|
| Motor | BHI62SMT-G2 | SGD 531 | USD 425 | 16 Working Days |
Bao gồm
- Motor: None
Thông số kỹ thuật
Đặc trưng

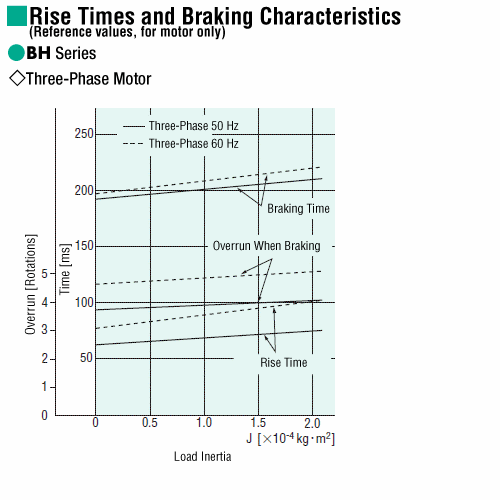

Starting and Braking Characteristics (Reference values)
Starting and Braking Characteristics (Reference values)
Tải dữ liệu
Các thông số kỹ thuật khác
General Specifications
| Item | Specifications |
|---|---|
| Insulation Resistance | After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger. |
| Dielectric Strength | No abnormality is observed even with an application of 1.5 kVAC at 50 Hz between the coils and the case for 1 minute after rated operation at normal ambient temperature and humidity. |
| Temperature Rise | After a gearhead or equivalent heat sink*is connected for rated operation at normal ambient temperature and humidity, the measurement value of the winding temperature rise is 70 °C max. using the resistance change method. |
| Thermal Class | 130 (B) |
| Overheat Protective Device | Built-in thermal protector (automatic return type) Open: 150 ± 5 °C, Return: 96 ± 15 °C |
| Operating Ambient Temperature | Single-phase 100 V, single-phase 200 V, three-phase 200 V: -10~+50 °C (Non-freezing) Other voltages: -10~+40 °C (Non-freezing) |
| Operating Ambient Humidity | 85 % max. (Non-condensing) |
| Degree of Protection | IP54 (excluding mounting surface of the round shaft type) |
- *Heat Sink Size: 230 × 230 mm, 5 mm thickness (Material: Aluminum)
Tiêu chuẩn
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with safety standards for each of our product models can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
