Electric Linear Slide EAS Series Product Line
Please purchase electric linear slides, drivers, and connection cables separately.

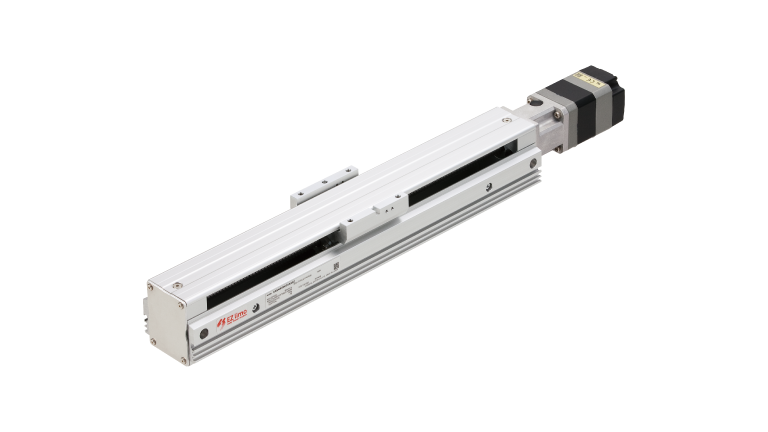

Electric Linear Slides
| Width × Height [mm] |
Model | Maximum Transportable Mass [kg] |
Stroke [mm] |
Power Supply Input [V] |
Electromagnetic Brake | ||
|---|---|---|---|---|---|---|---|
| Equipped | Not Equipped | ||||||
|
40 × 38 | EASM2 | Horizontal 15/Vertical 5 | 50~300 (50 mm increments) |
24 VDC | - | ○ |
| 58.4 × 60 | EASM4 | Horizontal 30/Vertical 14 | 50~500 (50 mm increments) |
Single-Phase 100-120 VAC Single-Phase 200-240 VAC Three-Phase 200-240 VAC 24/48 VDC |
○ | ○ | |
Driver
| Driver Type | Power Supply Input [V] |
|
|---|---|---|
|
Built-In Controller | Single-Phase 100-120 VAC Single-Phase/Three-Phase 200-240 VAC 24/48 VDC* |
| Pulse Input With RS-485 Communication | ||
| Pulse Input | ||
| EtherCAT Compatible | ||
| EtherNet/IP Compatible | ||
| PROFINET Compatible | ||
| MECHATROLINK-III Compatible | Single-Phase 100-120 VAC Single-Phase/Three-Phase 200-240 VAC |
|
| SSCNET III/H Compatible |
- *EASM2 is 24 VDC only
Connection Cable Set/Flexible Connection Cable Set
- The motor cable, encoder cable and electromagnetic brake cable from the motor cannot be connected directly to the driver.
- Use flexible connection cables for applications where cables are bent.
| Length [m] |
|
|---|---|
|
0.5~20 |
