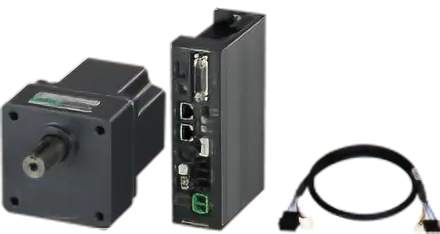

Brushless Motors

BLV Series

High power 100 W (0.1 kW), 200 W (0.2 kW), and 400 W (0.4 kW) DC input brushless motors.
The advantages of brushless motors, such as excellent speed stability and a wide speed control range, are retained, but supports battery operation and control via communication.
This product can also be used for AGVs including the ones used in factories and warehouses.^*

*Refer to here for more information on the applicable coverage of product.

Tính năng Tải xuống Loại sản phẩm và thông tin liên quan

Tính năng |Brushless Motor BLV Series

Key Features
Selectable From I/O, Modbus (RTU), and Industrial Network Control
Support Software MEXE02 for Easy Start-Up and Maintenance

Key Features

Supports Battery Drive

Wide Allowable Operating Voltage Range That Allows Battery Drive

As long as the voltage is within the range, the motor can be operated without triggering the alarm.

Allowable Operating Voltage Range
Can be Driven Even When Battery Voltage is Low

The maximum rotation speed is limited according to the voltage to avoid the motor stopping due to battery failure.

Maximum Speed Limiting Characteristics at Low Supply Voltage

Contributes to Compact, High Power Equipment Design

Hollow Shaft Flat Gearhead With High Strength and High Permissible Torque

High Strength

High permissible radial load enables powerful and high-spec operation.
- *200 W/400 W, 10 mm from the gearhead mounting surface
Unsaturated Permissible Torque

Since the permissible torque is not saturated, the motor's torque can be utilized to the fullest.
- *400 W, up to 3000 r/min

Space and Cost Saving

The hollow output shaft allows direct connection with the drive shaft.
By eliminating the need for connecting parts to the shaft, it saves space and contributes to the reduction of cost for parts.

Mechanical and Electrical Brakes Can be Used Separately or Together

Mechanical Brakes Using Electromagnetic Brakes

The electromagnetic brake type is suitable for position holding when stopped and for vertical operation (gravitational operation). When the power is turned OFF, such as during a blackout, the motor stops instantaneously to hold the load in place.

Vertical Operation (Gravitational operation)
[Stabilizes and Holds the Wheels of the AGV]

Please note that there are limitations to the power supply when using in vertical operation (gravitational operation).

Drive Method		Standard Type	Electromagnetic Brake Type
Horizontal Drive	Switching-mode power supply	○^＊	○^＊
Horizontal Drive	Batteries	○	○
Vertical Operation (Gravitational operation)	Switching-mode power supply	×	○^＊
Vertical Operation (Gravitational operation)	Battery	×	○

*Regenerative energy is generated when the motor shaft is turned by an external force, such as when moving downwards on an incline or stopping suddenly. Since the driver does not have a regenerative energy processing function, the protective functions of the power supply and driver may be activated. Use a power supply or battery with sufficiently large output power capacitance and overvoltage resistance.

Generates a Holding Force When an External Force is Applied, Load Holding Function (Digital setting type, RS-485 communication type)

It can be used as an electrical holding brake^* when stopping without a mechanical brake.

*It can hold loads of up to 50 % of rated torque.

Advantages of No Mechanical Brake Mechanism

Long life with no maintenance required due to non-wear parts
Minimizing space usage and weight of the equipment

Note

If the power supply to the driver is turned off, the holding force dissipates. This cannot be used to prevent a fall when stopped.

Applications

Applications that frequently start and stop

Equipped With Convenient Functions for Speed Control

An Example of Other Functions

Acceleration and Deceleration Time	Acceleration and deceleration time can be set.
Torque limiting	This function limits the motor output torque. A TLC signal is output when the set limiting value is reached.
Alarm	Stops operation and outputs signal Main circuit overheat/overvoltage/undervoltage/overload, etc.
Warning	A signals is output at the warning level value before it becomes an alarm. The motor operation will continue. Main circuit overheat/undervoltage/overload, etc.

Specification Upgrade and Expanded Functions are Available

You can extend functions in the following ways.

Using support software MEXE02
Using control module OPX-2A
RS-485 communication control
Industrial network control^*1

Item	Standard Model	Expanded Model
Specifications	Speed Control Range: 100~4000 r/min^*2 Speed Regulation: ±0.5%	Speed Control Range: 80~4000 r/min^*3 Speed Regulation: ±0.2 %
Functions	Speed setting (Internal speed potentiometer, external analog setting) Acceleration time, deceleration time setting Torque limiting	Various display functions Operating speed (speed reduction ratio, speed increasing ratio settings), Conveyor transfer speed, Load factor, Alarm code, Warning code, I/O monitor Operation data digital setting (Rotation speed, torque limit, acceleration time, and deceleration time can be set up to 8 points) I/O signal assignment and test operation Data copy

*1: A network converter (sold separately) is required for industrial network control.

*2: 100~3000 r/min for 100 W

*3: 80~3000 r/min for 100 W

Selectable from I/O, Modbus (RTU), and industrial network control

Control from a host controller can be performed by either I/O, Modbus (RTU), or industrial network control.
Control over the industrial network is achieved through a network converter (sold separately), which is a communication protocol converter.

I/O Control

The operation data (rotation speed, etc.) is set in advance in the driver, and signals are input from the PLC to operate at the setting data.

Modbus (RTU) Control

Easy to set operation data, parameters, and input operation commands from PLCs and other devices.

Industrial Network Control via Network Converter

This configuration uses a network converter to connect to an industrial network (sold separately). Operation data setting and operation commands input are available from the network. A single converter can connect and control multiple motors.

Support Software MEXE02 for Easy Start-Up and Maintenance

Useful Functions Utilizing Support Software MEXE02

By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various statuses.

Click here to download the support software

Comprehensive Support From Start-Up to Maintenance With a Variety of Functions

Startup and Evaluation
Useful functions for wiring check and test operation are provided.
- Setting and saving of operation data
- I/O monitor
- Teaching, remote operation
Adjustment
The following functions are available to help you adjust motor operation after the equipment is installed.
- Waveform Monitor
Diagnosis and Maintenance
Diagnostic and maintenance functions are available for trouble diagnosis and maintenance after operation is started.
- Alarm monitor
- Status monitor
- Warning monitor

Operation Data/Parameter Setting Screen
Waveform Monitor

Click here for details on support software functions

Product Line

Type	Frame Size [mm]	Rated Output Power [W]	Maximum permissible torque^*1 [N·m]	Gear Ratio	Speed Control Range [r/min]	Electromagnetic Brake
Parallel Shaft Gearhead GFS Gearhead	90	100	30	5~200	100 (80)^*3 ~3000	Equipped/Not equipped
	104	200	63	5~200	100 (80)^*3 ~4000
	104	400	63	5~200	100 (80)^*3 ~4000
Hollow Shaft Flat Gearhead FR Gearhead	90	100	54	5~200	100 (80)^*3 ~3000
	104	200	38.3	10~100	100 (80)^*3 ~4000
	104	400	80.8	5~100	100 (80)^*3 ~4000
Round Shaft Type	104	200	0.65^*2	－	100 (80)^*3 ~4000
Round Shaft Type	104	400	1.3^*2	－	100 (80)^*3 ~4000

*1: The value for permissible torque is the value at the maximum rotation speed.

*2: The value for the round shaft type is the rated torque (N·m).

*3: These specifications apply when using digital settings (support software MEXE02, control module OPX-2A) or setting via communication.

Gearhead is Removable

The gearhead can be removed to change the direction of the motor cable outlet direction. It is also possible to replace only the gearhead when the gear ratio of the gearhead needs to be changed.

Significantly Increases Permissible Load Flange Drive Adapter (Sold separately)

Mounting on a parallel shaft gearhead increases permissible radial and axial loads.

Refer to here for more information.
