Brushless Motor BLV Series R Type Product Line

Product Line

Motors, drivers, connection cables, and power supply cables are all sold separately. These products are available to purchase in various combinations.

Motor

Output Shaft Type	Frame Size [mm]	Rated Output Power [W]	Gear Ratio	Permissible Radial Load [N] (Rated speed, in the case of maximum gear ratio)	Permissible Axial Load [N] (Rated speed, in the case of maximum gear ratio)	Rated Voltage [V]	Electromagnetic Brake
Parallel Shaft Gearhead	80	60	5~200	550*1	100	24~48 VDC	Not equipped
	90	100		650*1	150		Equipped/Not equipped
	90	NEW200	15~50	650*1	150
	110	200	5~200	1700*1	400
		400
Hollow Shaft Flat Gearhead	80	60	5~200	1200*2	400		Not equipped
	90	100		1500*2	500		Equipped/Not equipped
	90	NEW200	15~50	1500*2	500
	104	200	10~100	2040*2	800
		400	5~100
CS Geared Motor*3	60	60	5~20	260*1	70		Not equipped
Round Shaft	60	60	-	100*1	15		Not equipped
	90	100		170*1	25		Equipped/Not equipped
		200
		400

*1

Value at 20 mm from the tip of the output shaft.

*2

Value at 10mm from the mounting surface.

*3

A geared motor in which the motor and gearhead are integrated.

Click here for more information on gearhead features.

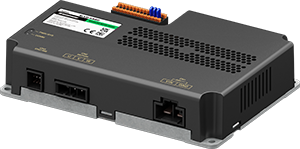

Driver

Output Power [W]		Voltage [V]
60~200		24~48 VDC
400		24 VDC
		48 VDC

Cable

Motor Output Power [W]	Connection Cable/Flexible Connection Cable	Power Supply Cable
60	0.3*~3 m	0.6 m
100, 200, 400	1~3 m

*

The cable length of 0.3 m is available for the connection cable only.

Direct Connection With a Single Cable, No Relay Required (60 W type)

The motor and driver can be directly connected with a single cable. It is possible to connect from 0.3 m to 3 m without relay processing.

Connection Cable

0.3 m~3.0 m

Flexible Connection Cable

1.0 m~3.0 m
